Design Highlights
Perfectly Centered USB-C port
'Katina' Engraving Under Glow

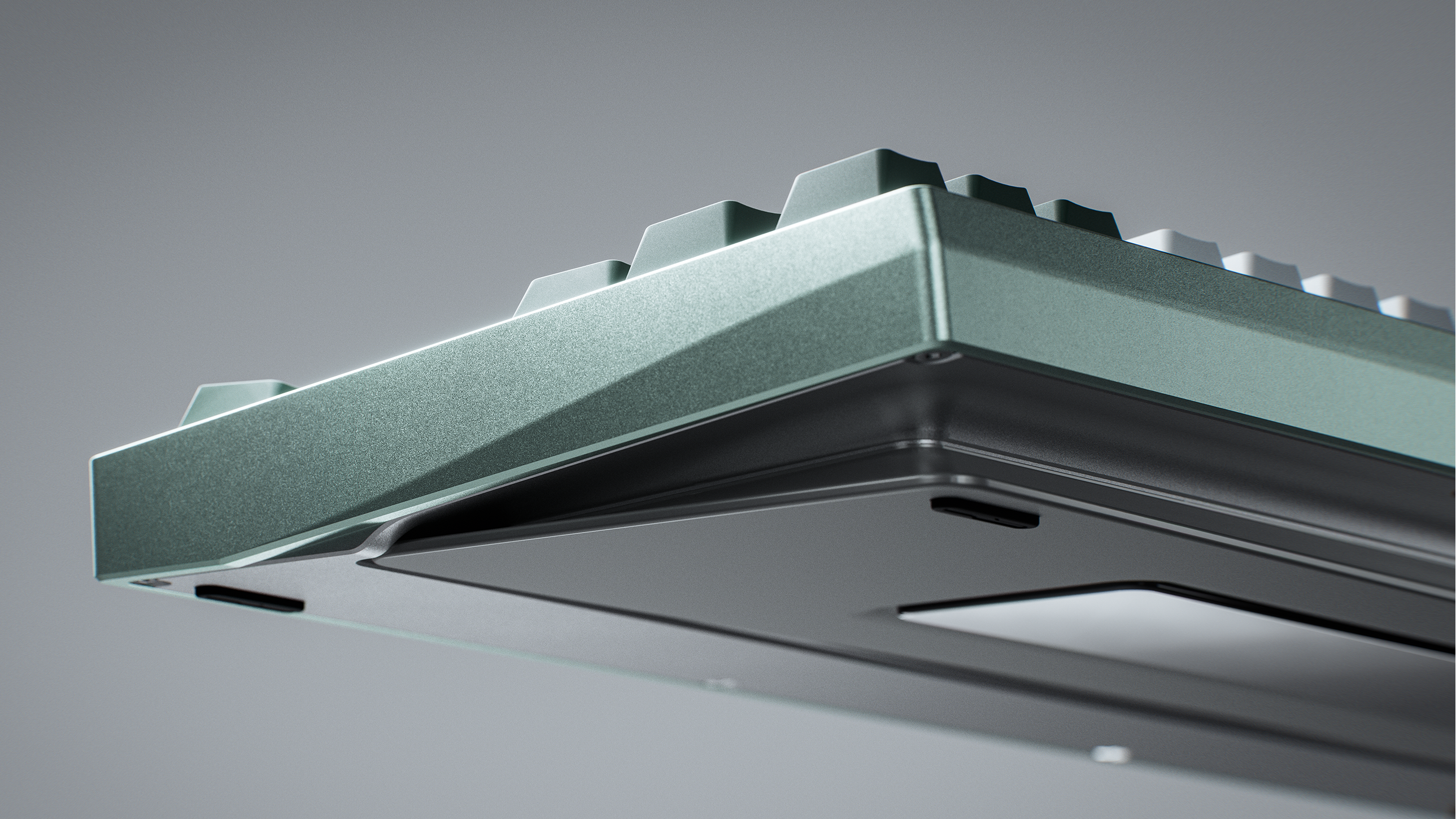

Smoothly Cureved ’Dual Arc‘ Back Weight & Bottom Case
Classic External Screws
‘Hourglass’ Side Profile

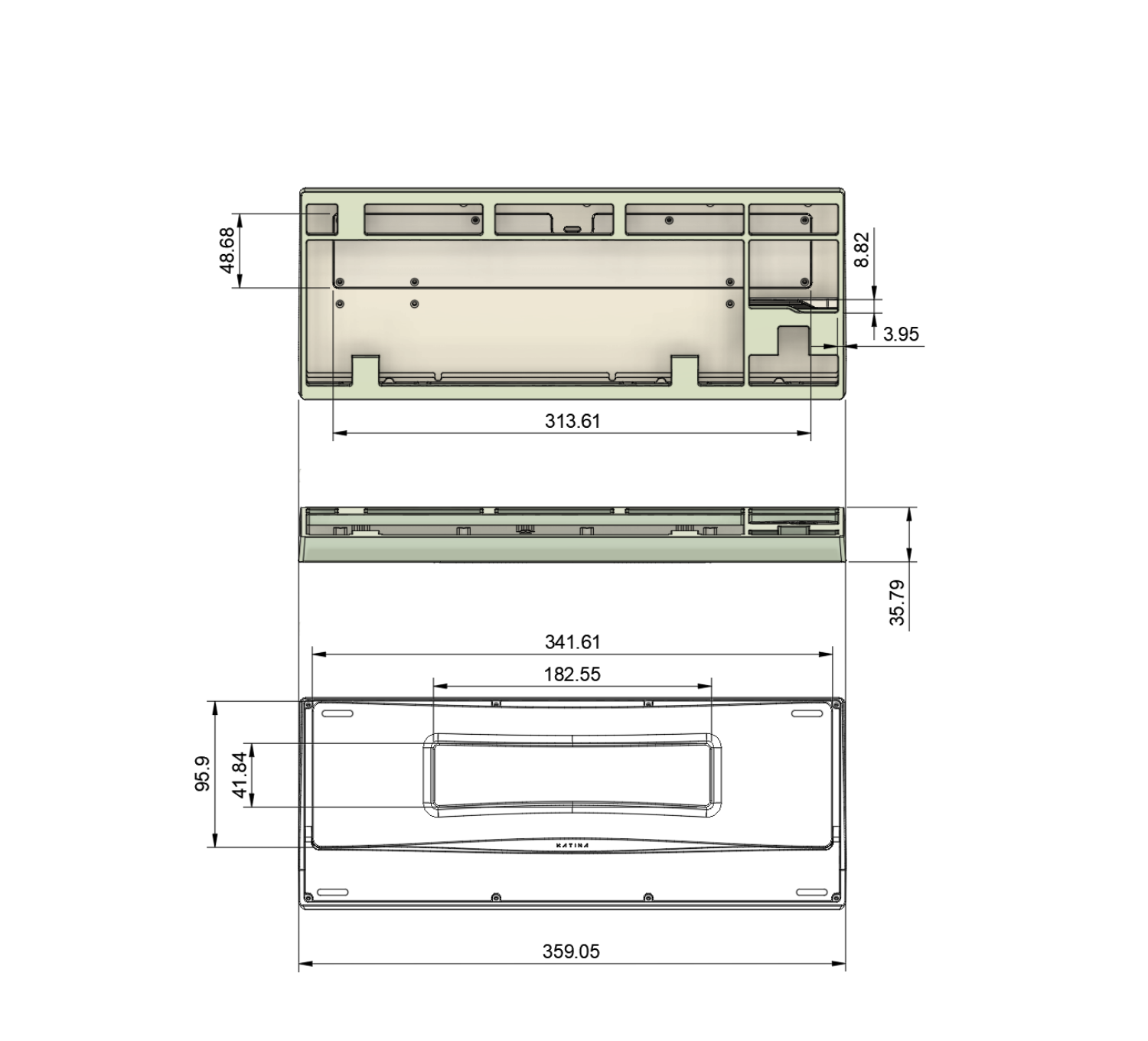

Specifications
- TKL, 7U Spacebar
- F12 - WK/WKL（Hotswap&Solder）
- F13 - HHKB（Solder Only）

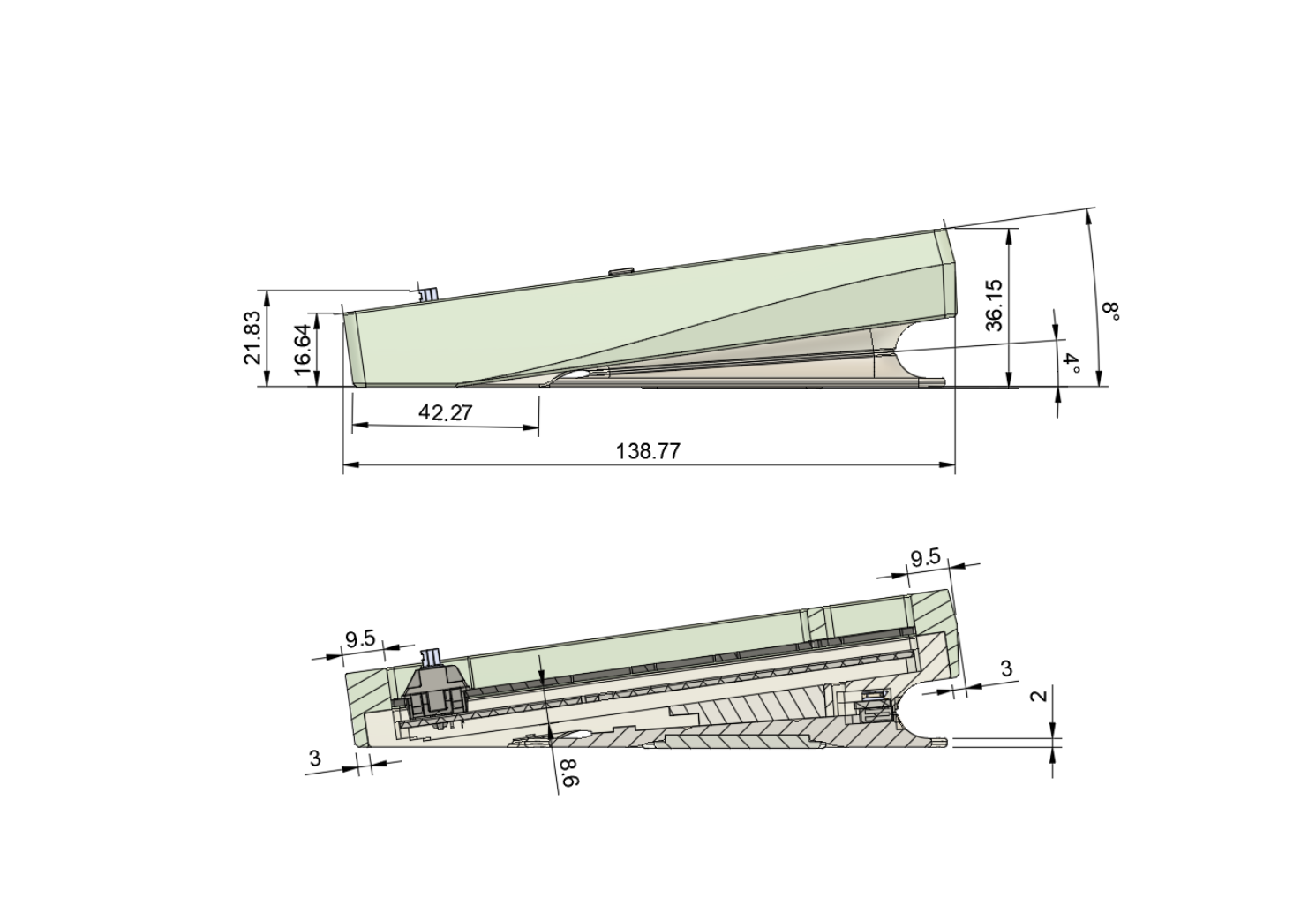

- Actual Front Height=16.64 mm
- EKH (Effective Keystroke Height) =21.83 mm
- Typing Angle：8°
- Classic Edition with SS Internal Weight, ≈ 2.2kg
- Classic PC Edition with Alu Internal Weight, ≈ 1.7kg

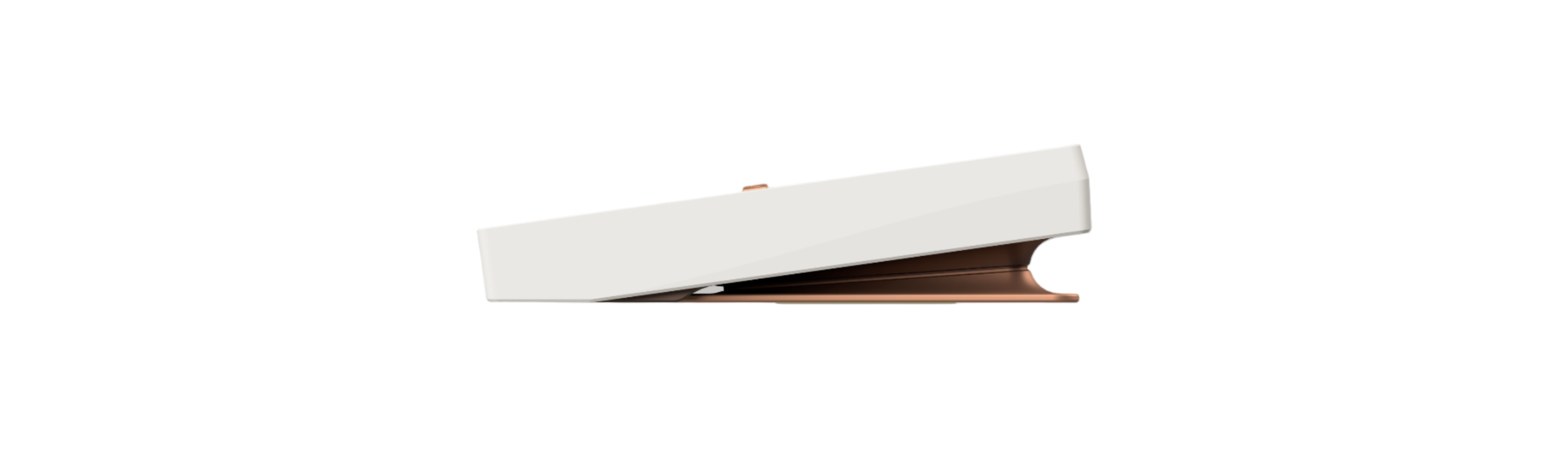

- Deluxe Edition, ≈3-3.2 kg
1.6mm, FR4, White matte finish, Copper-filled logo and edge, No flex-cut, QMK/Vial, Wired only
Hontoo, Shenzhen, China

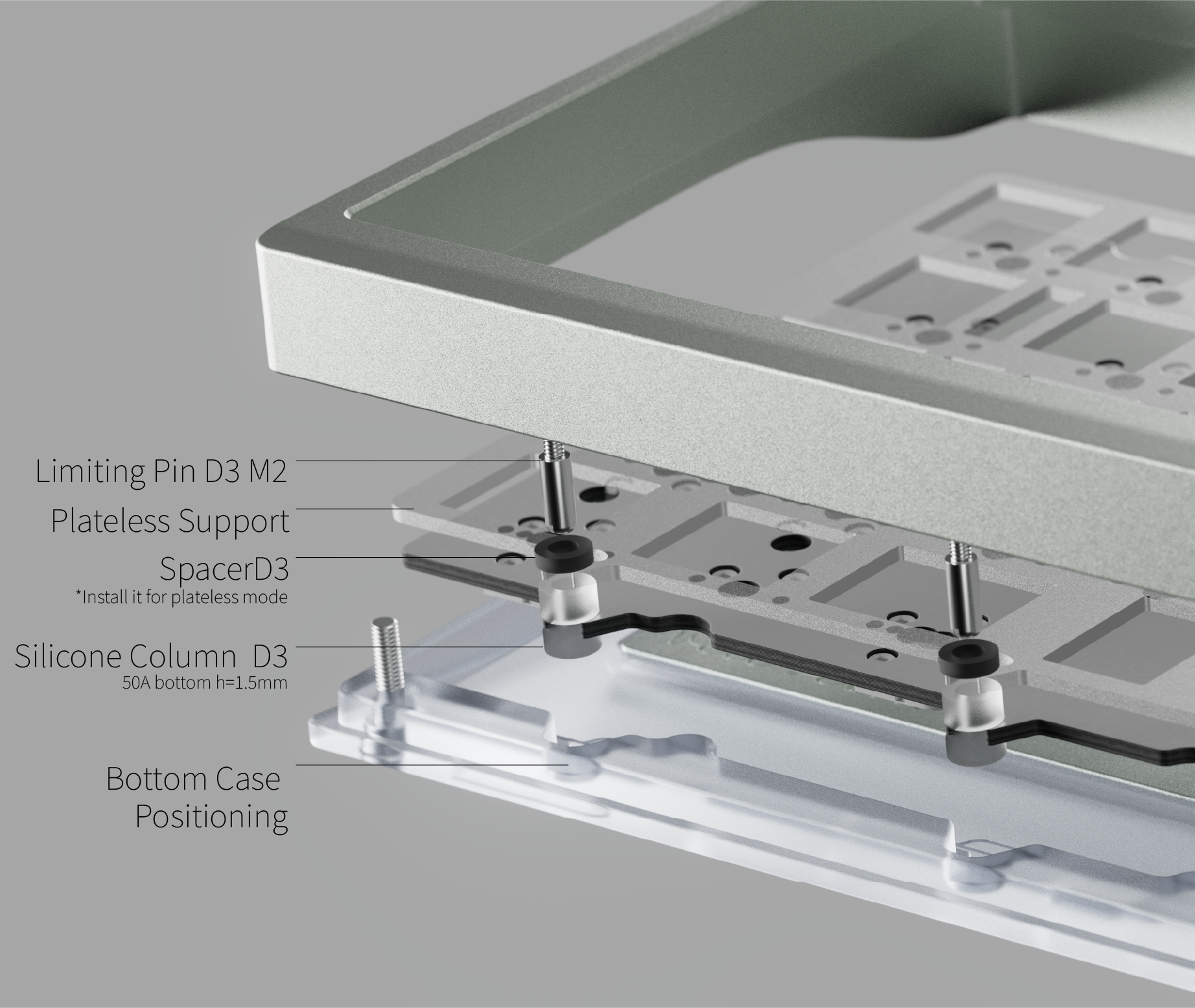

Katina TKL utilizes silicone grommets with central through-holes to support the PCB at a total of 9 points (4 top, 5 bottom).
The internal assembly is suspended above the bottom case by these silicone nibs, while threaded positioning pins from the top case insert into the grommets' through-holes, restricting planar movement of the assembly.
In this mode, the entire internal assembly makes no hard contact with the case. Simultaneously, the threaded positioning pins introduce a subtle sense of firmness, giving the internal assembly a character best described as resilient. With a generous cavity depth of 3.7mm beneath the assembly, the typing experience on the alphanumeric zone becomes notably soft and bouncy.

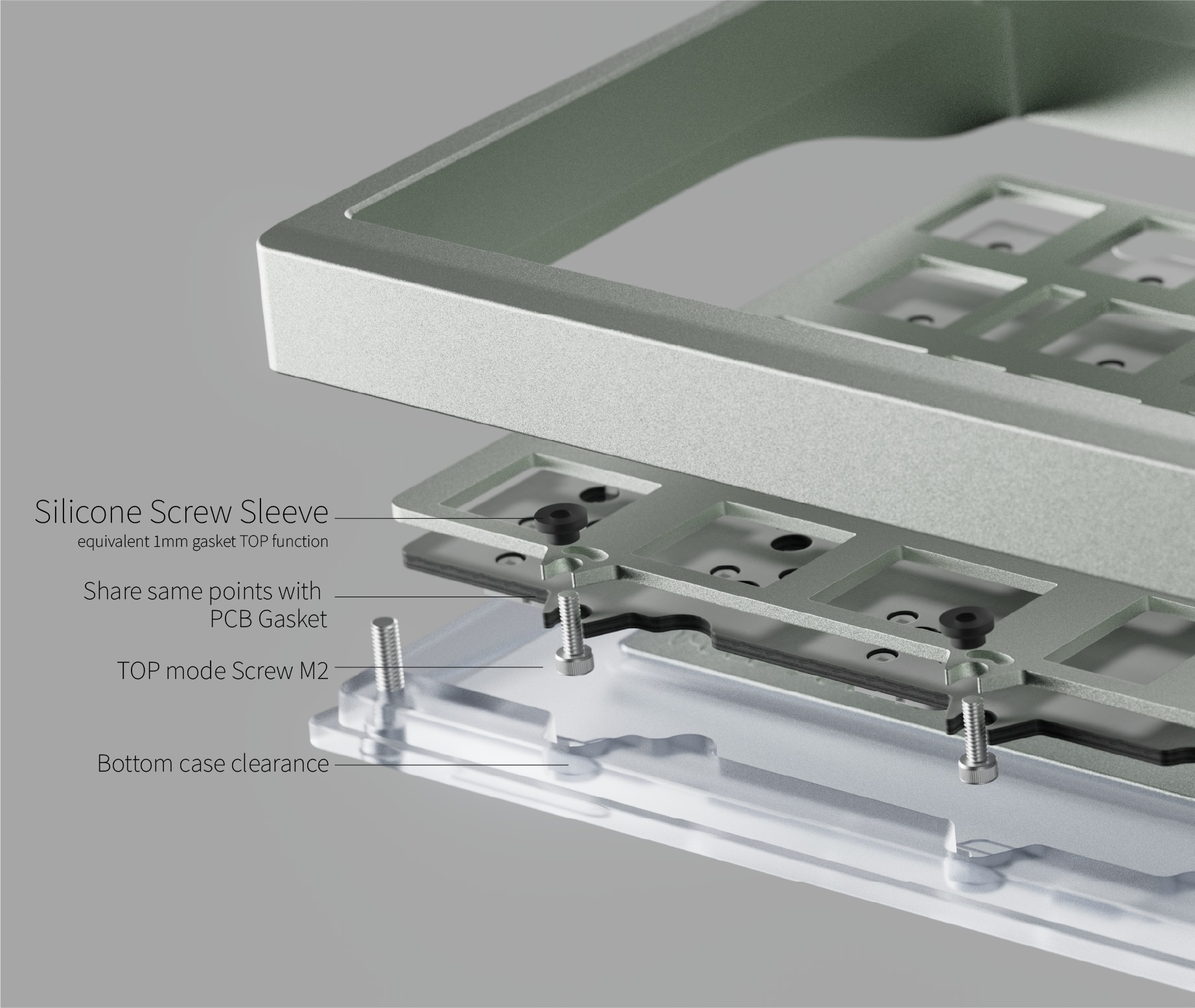

The Katina TKL can also be configured in a top-mounted mode using M2 cup head screws fitted with custom silicone sleeves.
The degree of screw tightness can be adjusted to influence the down travel to some extent, while the plate makes only minimal contact with the screw heads.
This design effectively isolates vibration and unwanted noise, resulting in a solid typing feedback.

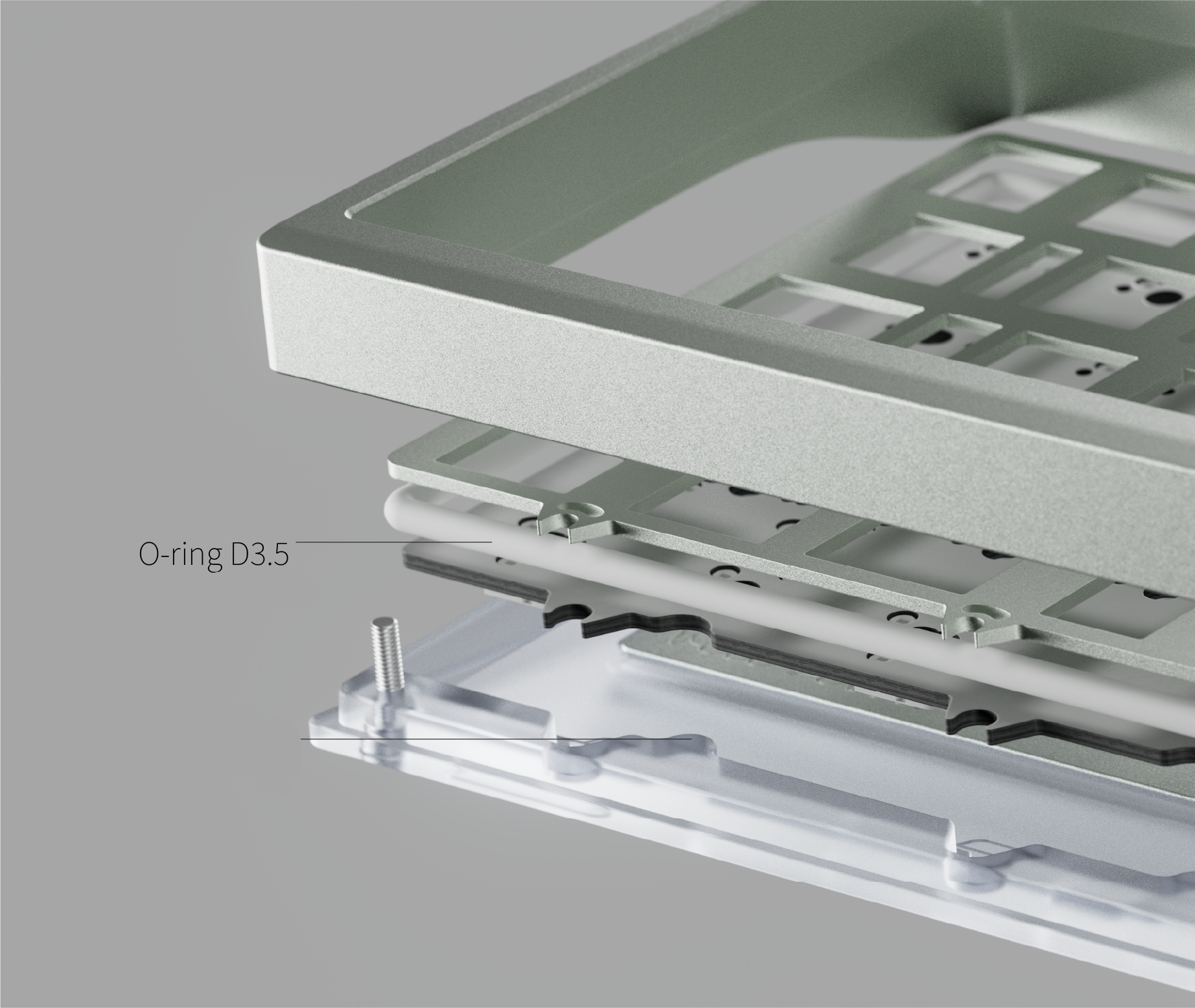

Katina TKL adopted a configuration of 5 upper and 3 lower O-ring bosses to support the internal assembly.
It also employs standard D3.5 silicone O-ring and includes compatible clearance cuts in the plate for screw-in stabilizers. This delivers a typing experience that is moderately soft and acoustically focused.
The design is compatible with most mod parts and accessories readily available on the market,
e.g. Nexuros X Geon ‘s PCB Snap & Key Snap
