iNN Annex #01

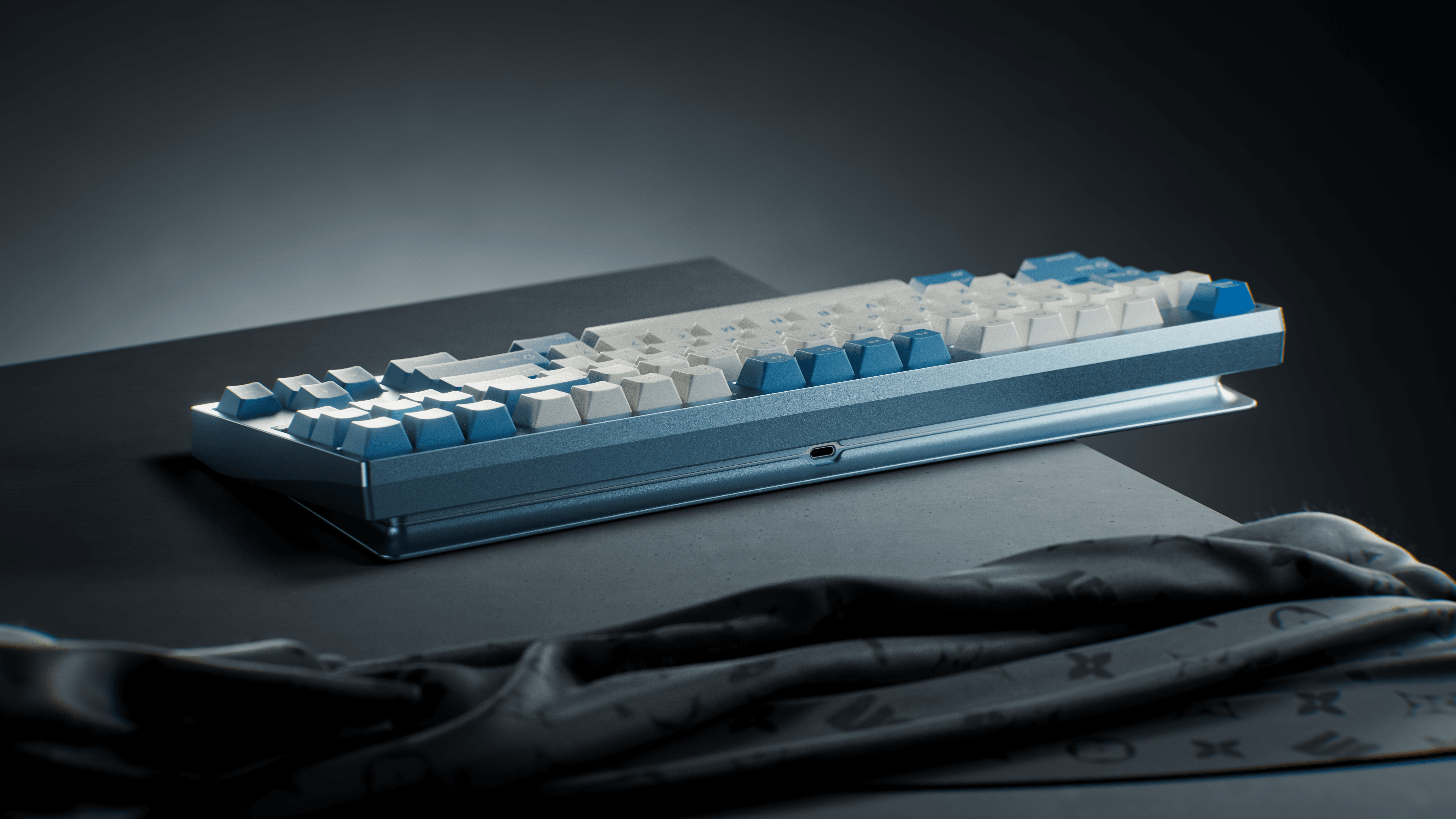

The first collaborative project between iNN Studio and an excellent designer XIONG: Katina TKL.
Inspired by the essence of a pure and elegant woman in imagination, Katina TKL embodies three core principles: Elegance, Softness, and Purity. Every detail flows from this vision—a keyboard not only shaped by aesthetics, but designed to convey emotion. This work represents a shared journey of creativity, with iNN Studio providing the foundational platform to refine, realize, and deliver XIONG's original vision as a complete product experience.
Specs
- TKL, 7U Spacebar
- F12 - WK/WKL（Hotswap&Solder）
- F13 - HHKB（Solder Only）
- Actual Front Height=16.64 mm
- EKH (Effective Keystroke Height) =21.83 mm
- Typing Angle：8°
- Classic Edition with SS Internal Weight, ≈ 2.2kg
- Classic PC Edition with Alu Internal Weight, ≈ 1.7kg
- Deluxe Edition, ≈3-3.2 kg
- 1.6mm, FR4, White matte finish, Copper-filled logo and edge, No flex-cut, QMK/Vial, Wired only
- FPC to USB-C Daughter Board
Sales Info
Entry kit
- Alu top case
- Alu or PC bottom case to your choice
- Alu internal weight
- Alu base piece
- SS maching pattern external weight
- Alu front accent, choose one of two designs
- Solder PCB
- Alu plate
What else are included?
- 1 × Daughterboard + FPCs
- 1 × LED moudule
- 15 × D3 hollow silicone grommets (50A hardness)
- 1 × D3.5mm O-ring (50A hardness)
- Sufficient limiting pins & spacers
- Sufficient TOP mount silicone sleeves
- 16× Custom iNN feet (8 black + 8 white)
- All necessary screws + spares
- 1× PET bottom pad
- 1× iNN Studio custom keyboard carrying case
- 1× iNN Studio premium velvet bag
- 1× Exclusive PVC collector’s card
- All necessary accessory bags & protect
- Custom shipping carton packaging
Learn more about what's included by default
Vendor List:
TBA
- Global GB
- Limited time
- Unlimited quantity in both eddition
- CN pre-order opens in Dec
- Global pre-order coming soon
- 200 units
- Hontoo, Shenzhen, China
Classic Edition :
- starting at just $300 -320
Deluxe Edition:
- Floral $450-470
- Shadow $480-500
#Note: Prices may fluctuate but remain within this range
4-5 months after GB end
#Note: The manufacturing complexity of motif mirror PVD weightis exceptionally high, resulting in low yield rates. Therefore, deluxe edition orders exceeding 100 units may experience a slight delay in ETA.
Anodized:
- Silver, Light Teal, Spinal Purple, Earth Green,
- Wind Blue, Iris Blue, Ice Mauve, *Gunmetal
Coated:
- Quartz Pink, *Shinny Milky White
#Note: Color with *mark means its exclusive for Deluxe Eddition
Upgrade to:
- Hot-swap PCB
- Mirrored PVD SS external weight
- SS internal weight
- Blasted copper/SS base piece & front accent (comes togerther)
- Solder PCB
- Hotswap PCB
- Daughterboard and JST cable
- Plate in Alu/PP/PEI/CF/PC
- F12 WK/WKL top case
- F13 HHKB top case
- WK & WKl - we chose F12 Lauout to seek a classic vibe;
- HHKB - we go for F13 to achieve a more symmetrical main visual.

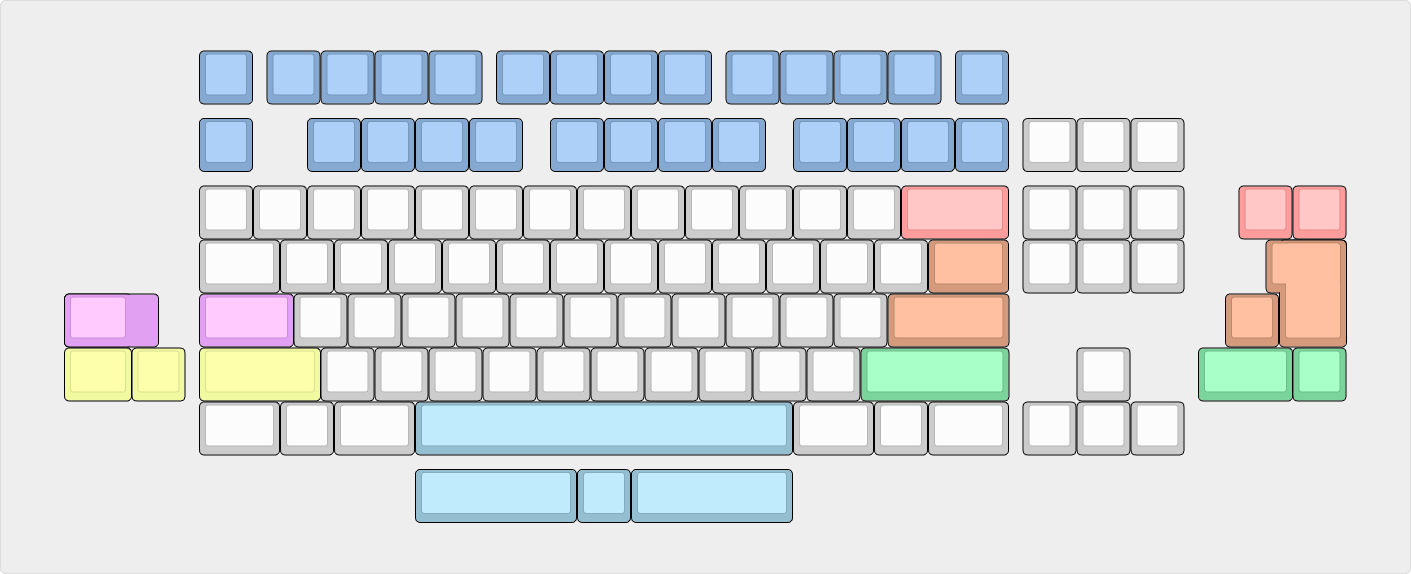

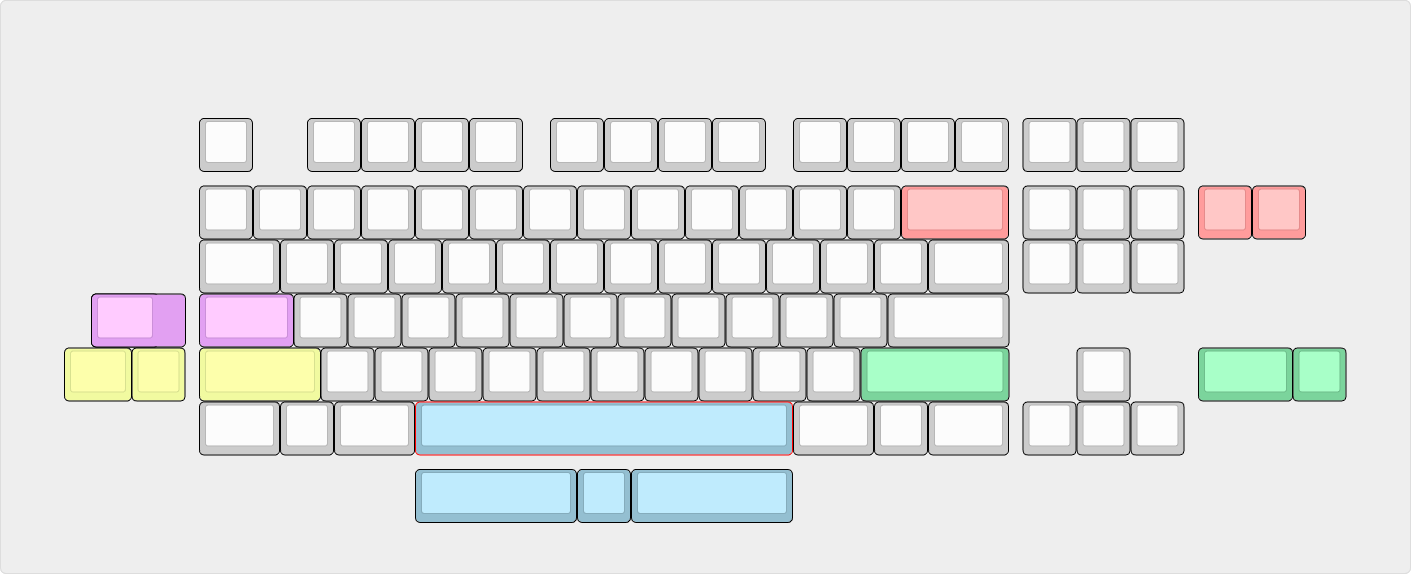

Compatibility
- Hotswap：
Split Backspace, Split L-Shift, Split R-Shift, Stepped Caps, 3-1-3 Split Sapcebar
- Solder：
Split Backspace, Split L-Shift, Split R-Shift, Stepped Caps, 3-1-3 Split Sapcebar, ISO Enter, F13 support
*Drag to see full layout map
Solder
Hot-swap

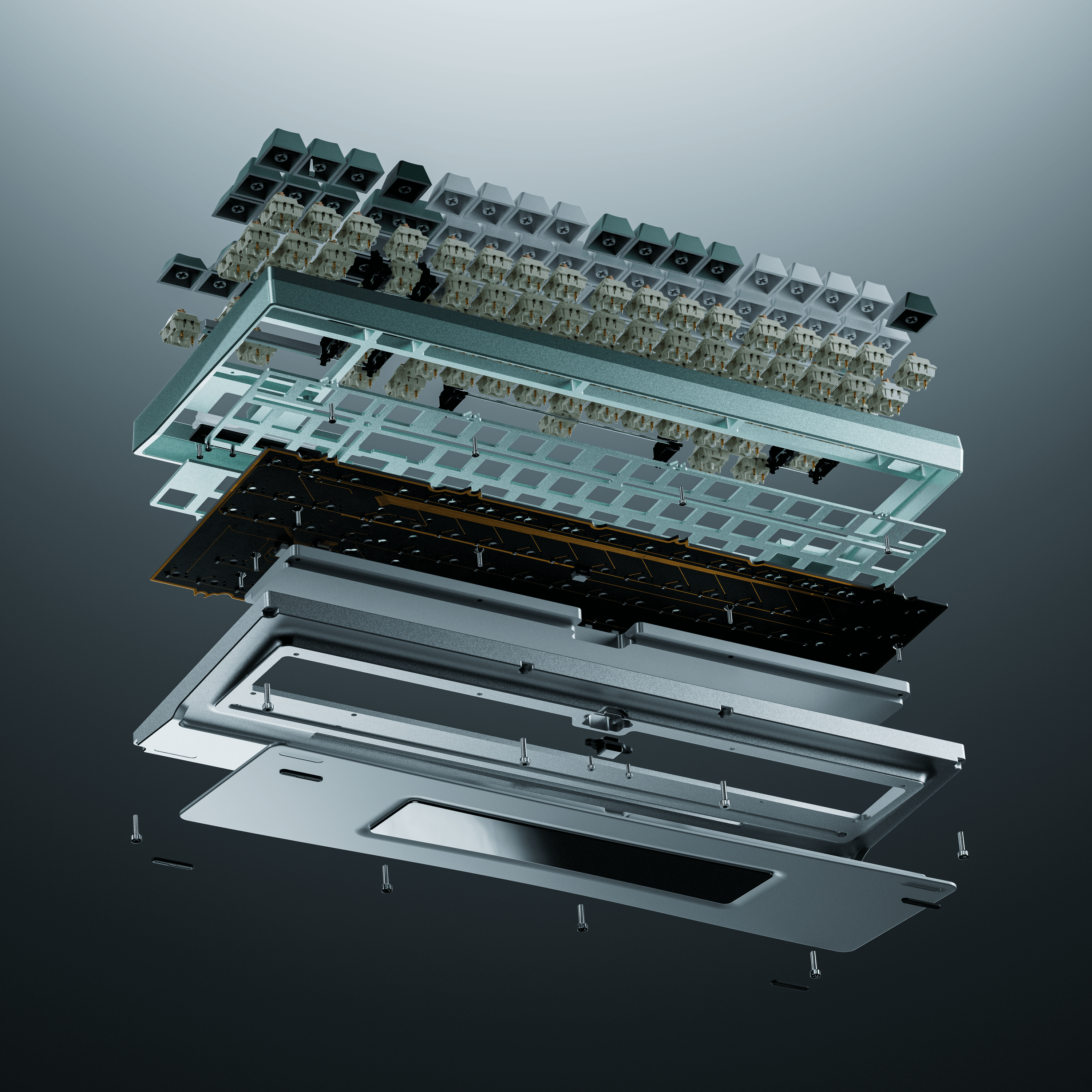

The internal assembly is suspended above the bottom case by the silicone columns, while limiting pins from the top case insert into the columns, restricting planar movement.
In this mode, the entire internal assembly makes no hard contact with the case. Simultaneously, the limiting pins introduce a subtle sense of firmness, giving a character best described as resilient.
With plateless mode and 3.7mm available travel space, the typing experience on the alphanumeric zone becomes notably soft and bouncy.

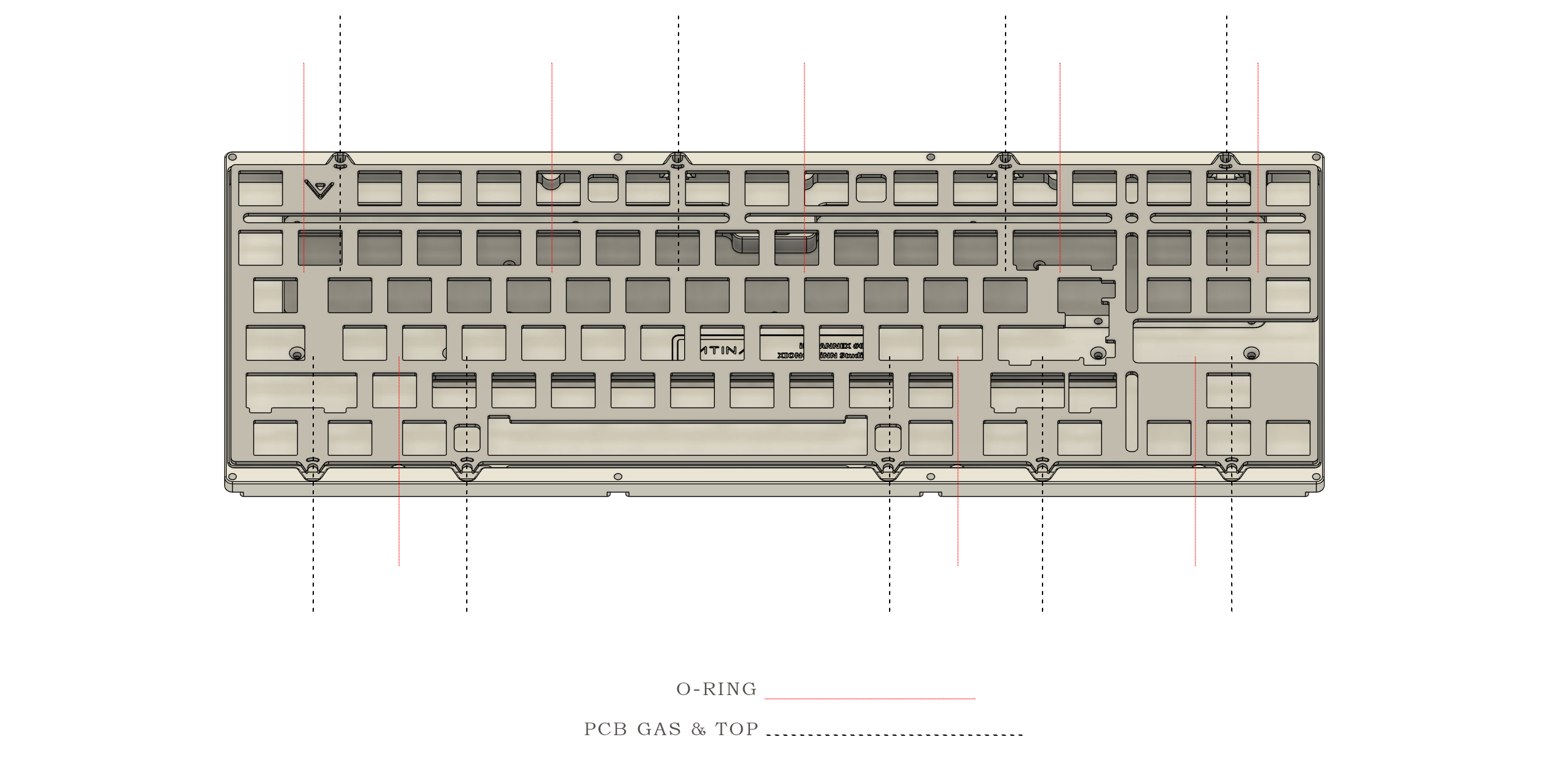

Katina TKL adopted a configuration of 5 upper and 3 lower O-ring bosses to support the internal assembly.
It also employs standard D3.5 silicone O-ring and includes compatible clearance cuts in the plate for screw-in stabilizers. This delivers a typing experience that is moderately soft and acoustically focused.
The design is compatible with most mod parts and accessories readily available on the market,
e.g. Nexuros X Geon ‘s PCB Snap & Key Snap
The Katina TKL can also be configured in a top-mounted mode using M2 cup head screws fitted with custom silicone sleeves.
The degree of screw tightness can be adjusted to influence the down travel to some extent, while the plate makes only minimal contact with the screw heads.
This design effectively isolates vibration and unwanted noise, resulting in a solid typing feedback.
Design Features
Perfectly Centered USB-C port

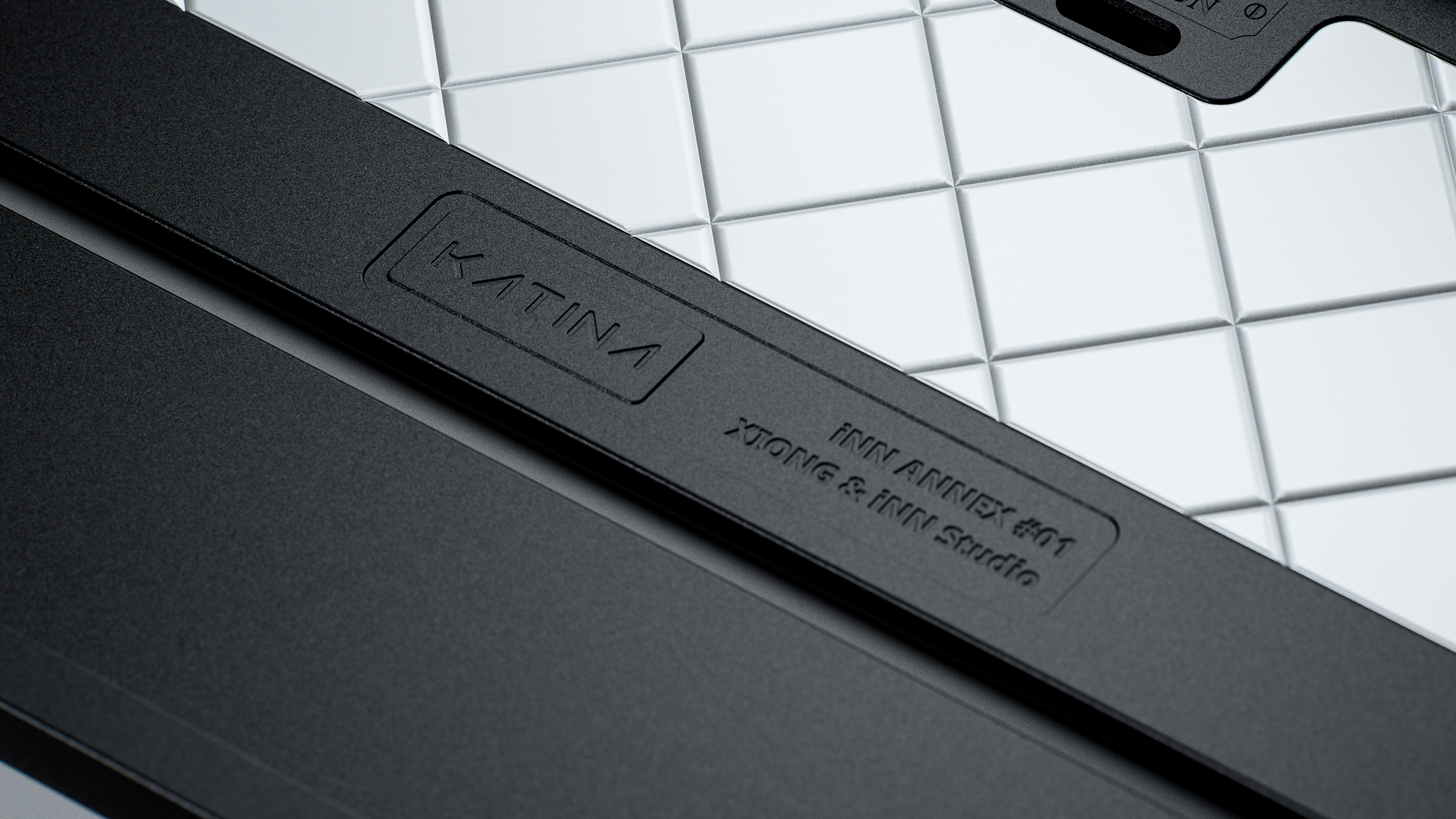

'Katina' Engraving Under Glow
Smoothly Cureved ’Dual Arc‘ Back Weight & Bottom Case
Classic External Screws
‘Hourglass’ Side Profile
Accent

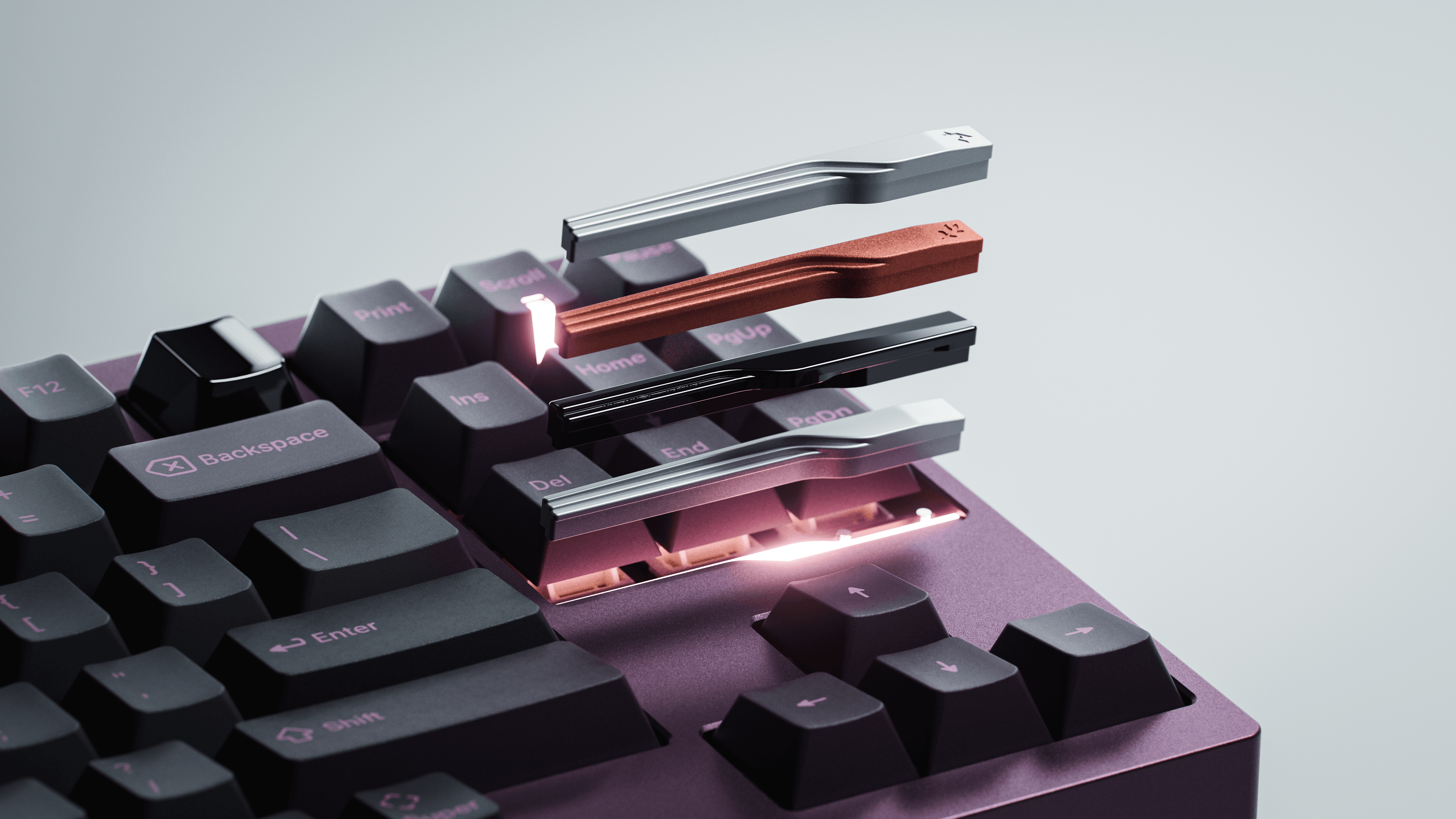

Located above the arrow keys, the decorative area draws inspiration from the architectural concept "Door of Order." It consists of three refined elements: a stepped nameplate structure, a softly diffused central light, and a finely machined texture line. Together, they create a cohesive visual narrative that balances design intention with emotional resonance.
Bezel
Precisely proportioned bazels—9.5mm top/bottom and 4mm left/right—achieving a balance of intentional whitespace without visual bulk. All four sides taper subtly inward, enhancing its elegant and slender silhouette.
Sculpted Silhouette

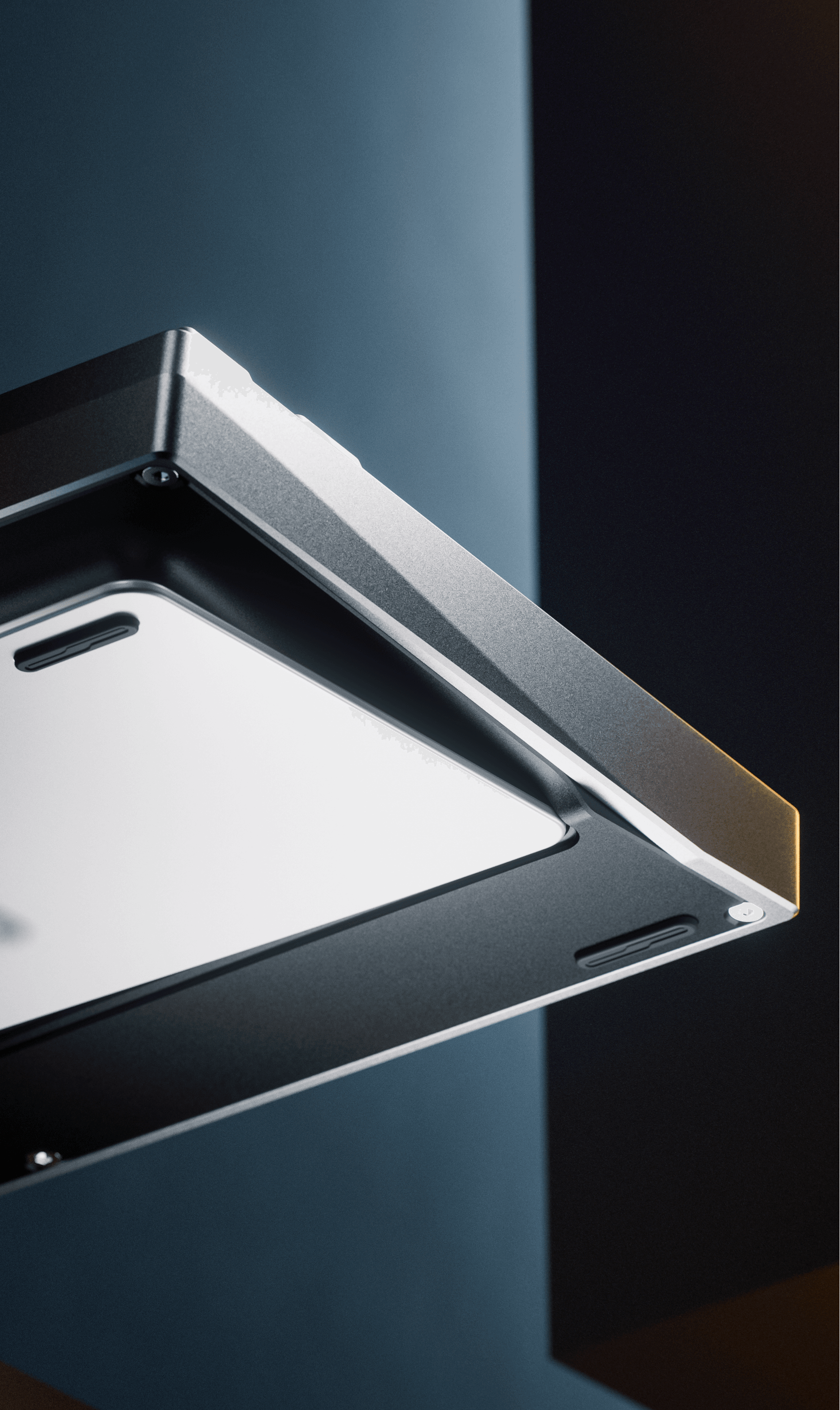

The side profile of Katina TKL is defined by an original "Dual-Arc Curve," inspired by the elegant contour of an hourglass. This flowing line is accentuated by a subtle inflection point, lending rhythm and softness to the form. Throughout the design, auxiliary lines—such as the waistline and bottom case line—are carefully integrated not only as transitions but as stages for light and shadow, establishing a harmonious visual order.
Floating Sensation
Emotionally, Katina TKL continues iNN’s exploration of a "Floating Sensation." Through precise coordination between the bottom case and external weight, a gem-like cut-out is subtly embedded in the middle. Visible only from certain angles, this restrained detail conveys a sense of quiet presence—as though the keyboard rests lightly upon the desk, inviting a moment of contemplation.
Structure in Balance

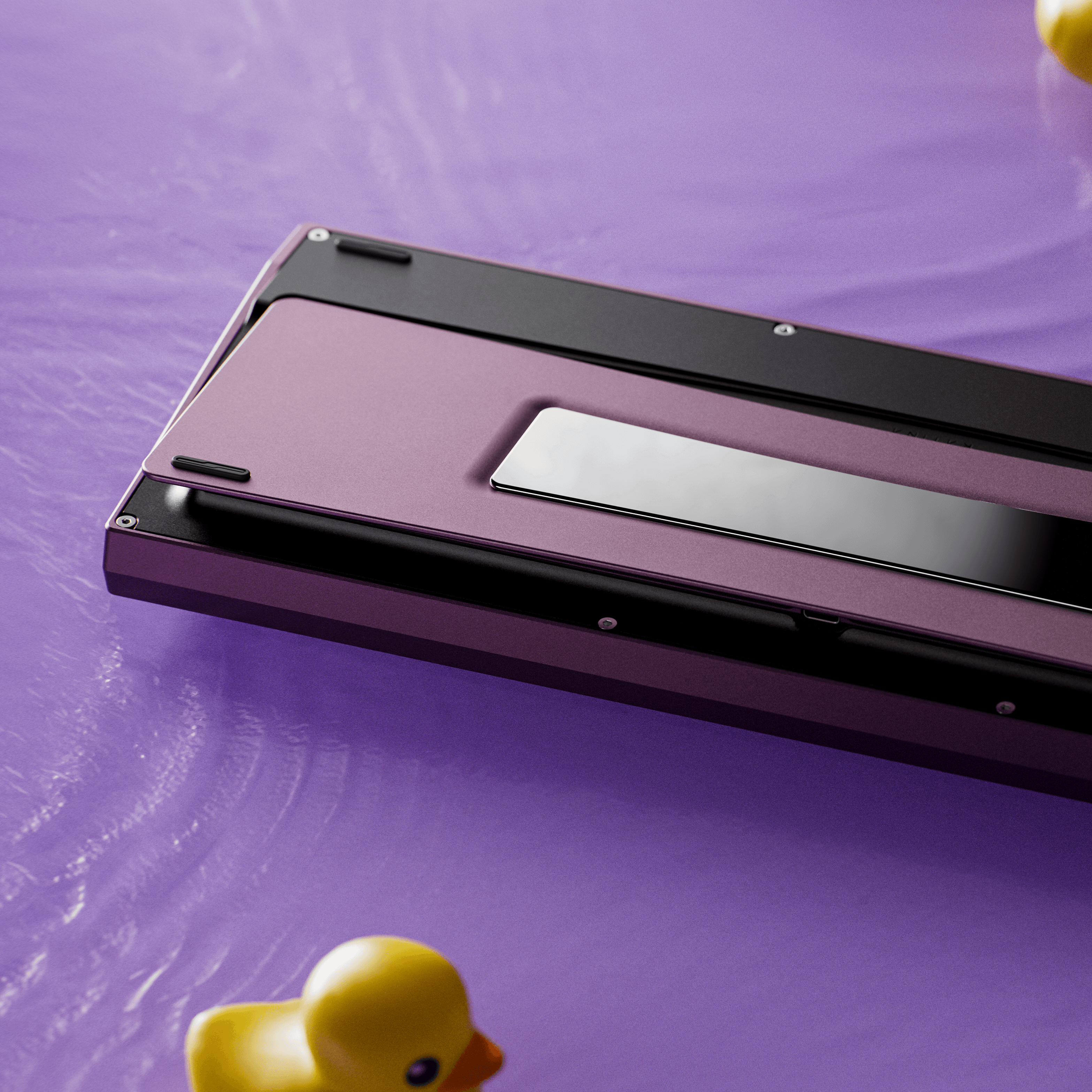

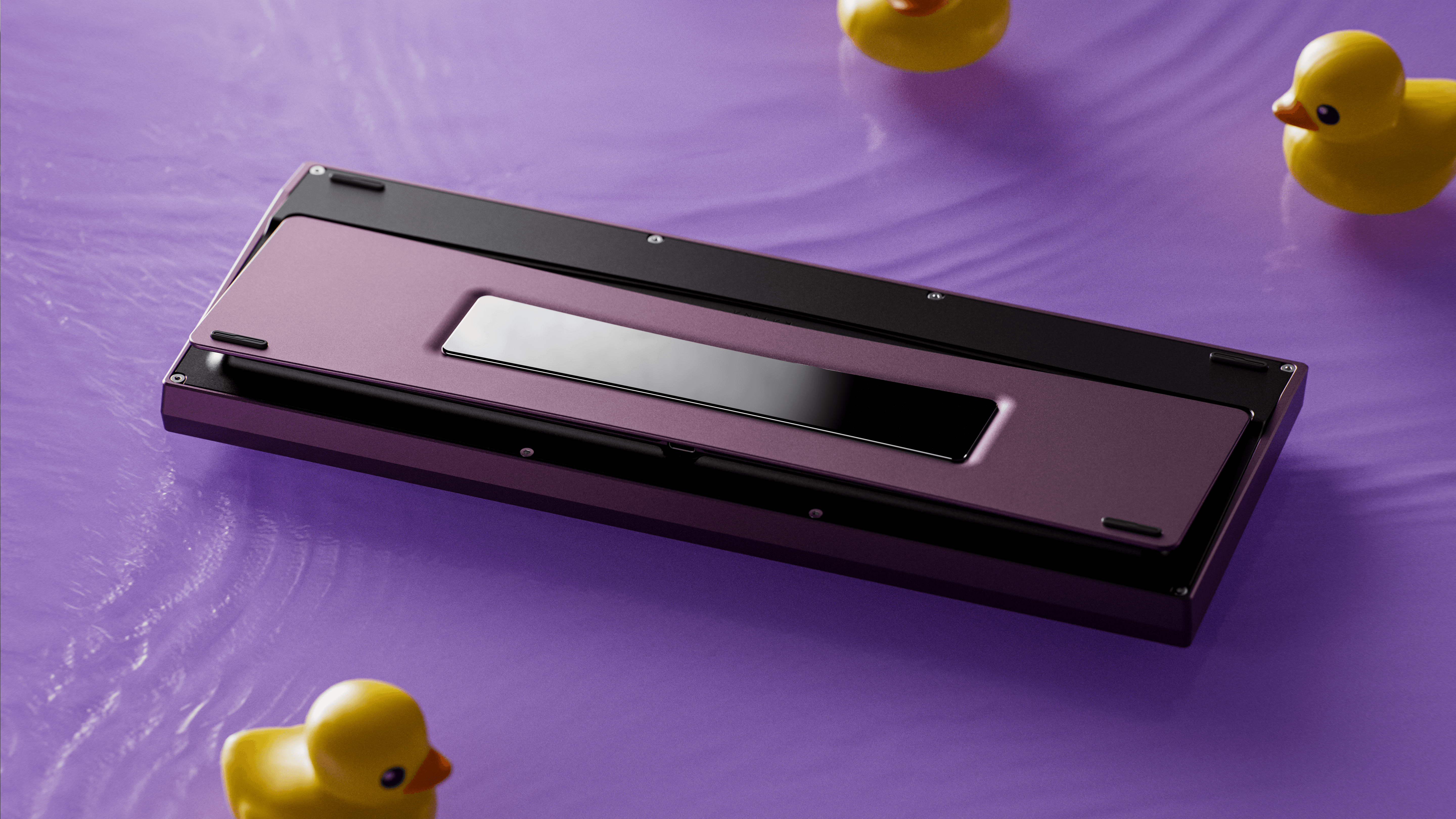

The rear view of Katina TKL is composed of three thoughtfully integrated elements: the lower case, an oversized external base weight, and a finely contoured weight plate. The generous use of materials such as stainless steel or red copper creates a striking visual presence, while the extended 18cm span of the weight block is balanced by elegantly curved crescents along its upper and lower edges. These flowing lines not only soften the sense of mass but also echo the hourglass-inspired silhouette of the keyboard’s side profile.
The Art of Light
Depth and order define the lower case, where a recessed arc engages in subtle dialogue with the base weight. Within this reserved space, two fading lines extend outward, reinforcing a sense of visual rhythm. A discreetly laser-engraved KATINA logo and a softly diffused LED—guided along the curved surface of the base—add refined detail and ambient sophistication. Through careful proportioning, intelligent layering, and precision mounting, the back achieves a harmonious and deep composition, free of visual clutte
Accent
Located above the arrow keys, the decorative area draws inspiration from the architectural concept "Door of Order." It consists of three refined elements: a stepped nameplate structure, a softly diffused central light, and a finely machined texture line. Together, they create a cohesive visual narrative that balances design intention with emotional resonance.
Bezel
Precisely proportioned bazels—9.5mm top/bottom and 4mm left/right—achieving a balance of intentional whitespace without visual bulk. All four sides taper subtly inward, enhancing its elegant and slender silhouette.
Sculpted Silhouette
The side profile of Katina TKL is defined by an original "Dual-Arc Curve," inspired by the elegant contour of an hourglass. This flowing line is accentuated by a subtle inflection point, lending rhythm and softness to the form. Throughout the design, auxiliary lines—such as the waistline and bottom case line—are carefully integrated not only as transitions but as stages for light and shadow, establishing a harmonious visual order.
Floating Sensation
Emotionally, Katina TKL continues iNN’s exploration of a "Floating Sensation." Through precise coordination between the bottom case and external weight, a gem-like cut-out is subtly embedded in the middle. Visible only from certain angles, this restrained detail conveys a sense of quiet presence—as though the keyboard rests lightly upon the desk, inviting a moment of contemplation.
Structure in Balance
The rear view of Katina TKL is composed of three thoughtfully integrated elements: the lower case, an oversized external base weight, and a finely contoured weight plate. The generous use of materials such as stainless steel or red copper creates a striking visual presence, while the extended 18cm span of the weight block is balanced by elegantly curved crescents along its upper and lower edges. These flowing lines not only soften the sense of mass but also echo the hourglass-inspired silhouette of the keyboard’s side profile.
The Art of Light
Depth and order define the lower case, where a recessed arc engages in subtle dialogue with the base weight. Within this reserved space, two fading lines extend outward, reinforcing a sense of visual rhythm. A discreetly laser-engraved KATINA logo and a softly diffused LED—guided along the curved surface of the base—add refined detail and ambient sophistication. Through careful proportioning, intelligent layering, and precision mounting, the back achieves a harmonious and deep composition, free of visual clutte
Configuration Guide
Classic Edition
Pure Design, Ultimate Freedom
The Classic Edition embodies the essence of the Katina TKL in its most refined form—free from decorative additions, delivering the perfect balance of freshness and value. Its structural feel and acoustic performance set a high benchmark for all upgraded variants, offering a complete experience of the designer's original vision at an accessible price point. This edition also includes the full iNN Studio unboxing and service experience.
With an extensive selection of SKUs, colors, finishes, and material upgrades, the Classic Edition puts the power of choice in your hands. Customize your keyboard your way—whether you prefer a minimalist look or a personalized style statement.
Configuration Guide
Upgrades & Addons
The Allure of Customization
Building upon the Classic Edition, we offer a range of upgrades to further enhance your customization experience. Tailor your build to match your preferences for weight, sound profile, and texture—crafting a keyboard that is uniquely and personally yours.
We provide material upgrades for multiple components of the Katina TKL, including copper and stainless steel options, alongside new finishes such as unique machining pattern and colored mirror PVD surfaces. Additionally, a wide selection of add-ons is available—from various plate materials and a second nameplate design to multi-layout top cases—allowing you to fully personalize every detail of your build.
Configuration Guide
Deluxe Eddition
Focusing on various high-value, high-texture craftsmanship as the core, complemented by exclusive custom product details, packaging, and accessories.

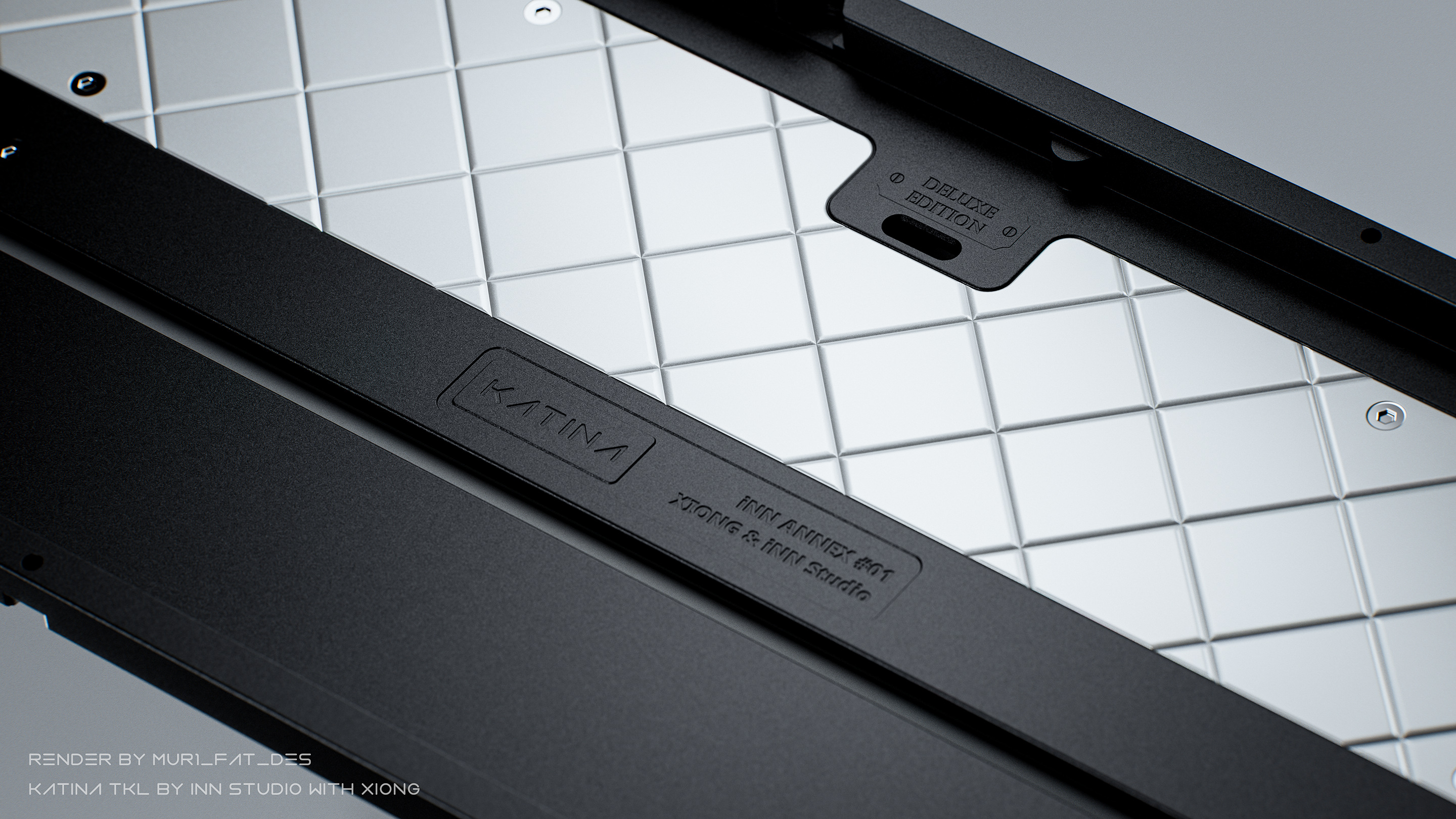

'The Artistic Interpretation of Stainless Steel'
The major design of Katina TKL's Deluxe eddtion is adding non-tactile patterns onto a mirror surface to achieve more complex, advanced aesthetic expression and emotional conveyance. Meanwhile, while pushing material and craftsmanship to their absolute limits, we've also prepared an abundance of design details to complement the 3D interior trim—including accent engraved patterns and deluxe logos.
The Deluxe versions feature exclusively designed packaging and inclusions, extensively utilizing materials like leather, silk, and silver to deliver an unboxing experience unlike any other.
Configuration Guide
Key Differences
Color Theme
Weights and Badges
Exclusivity & Unbox Experience
Up to 9 colors available to choose
Alu - Upgradable to Copper & SS
Unlimited, iNN Universal Packaging Design
Fixed & Exclusive - Creamy white with Dark coffe
Full Copper + Motif PVD *Exlusive Design
Limited, iNN Deluxe Packing Design - Floral
Fixed & Exclusive - Gunmetal with Black
Full SS + Motif PVD *Exlusive Design
Limited, iNN Deluxe Packing Design - Shadow
Configuration Guide

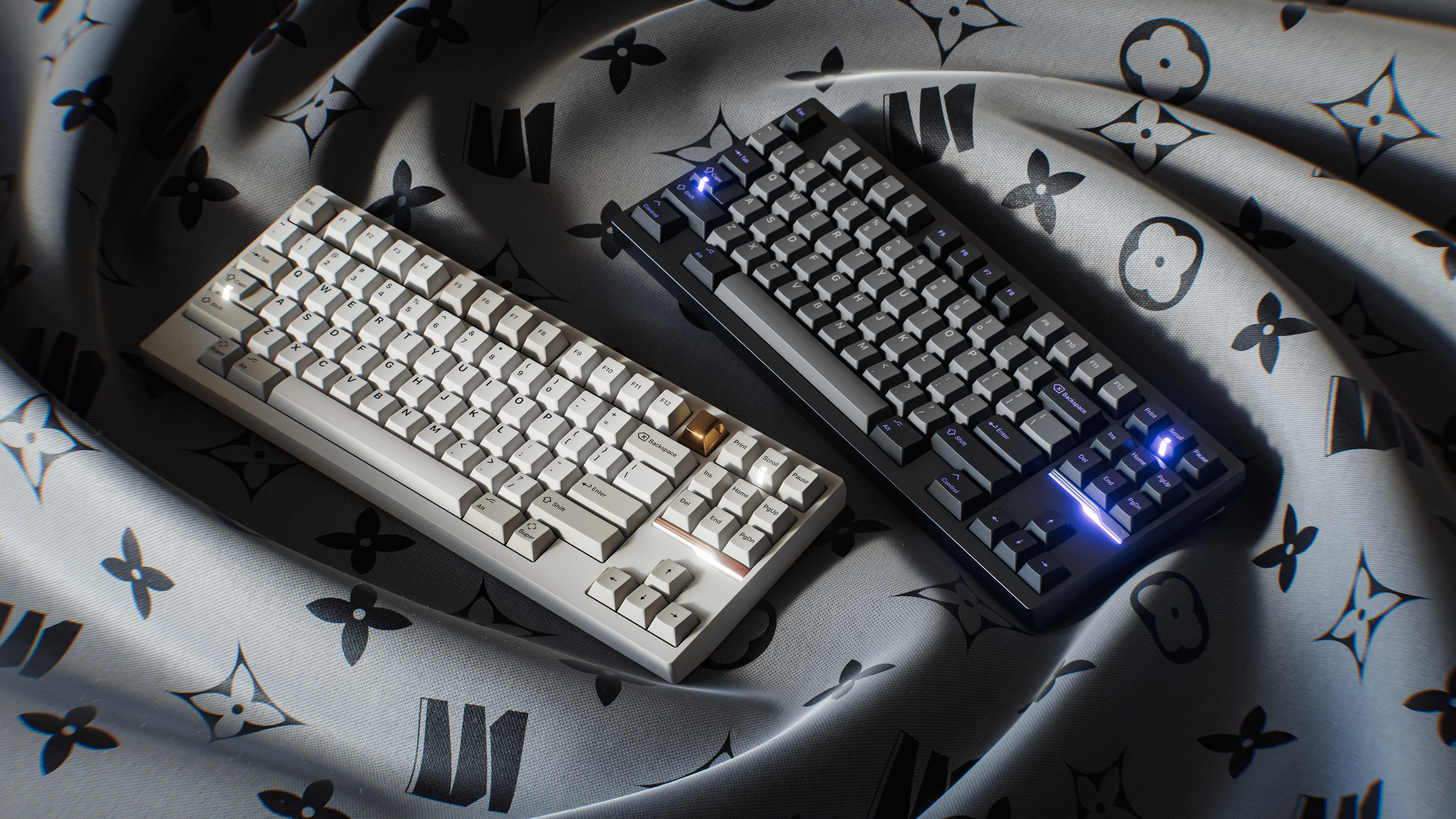

Deluxe Themes
For Deluxe Eddition , here are two exclusive design theme:
「Floral」 and 「Shadow」.

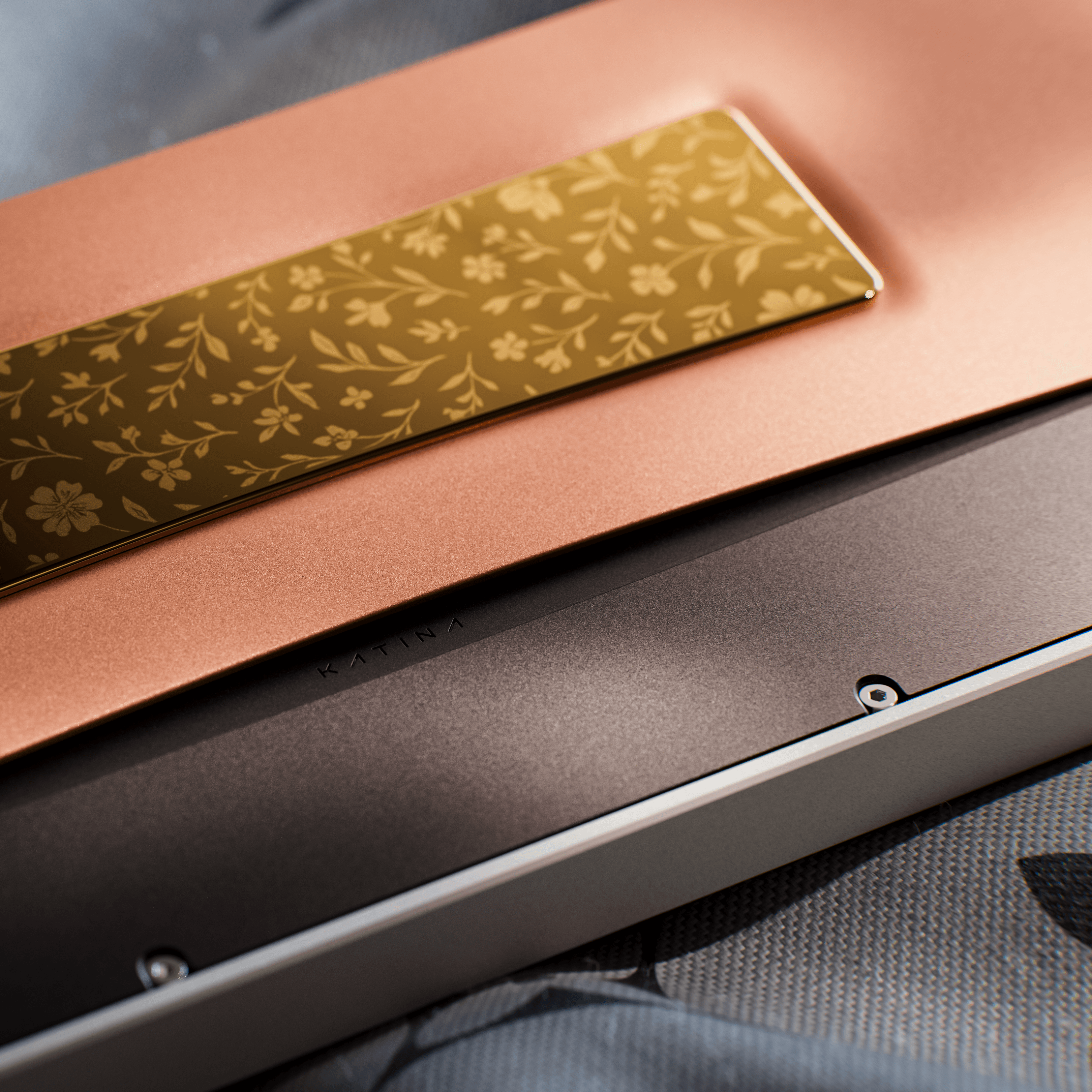

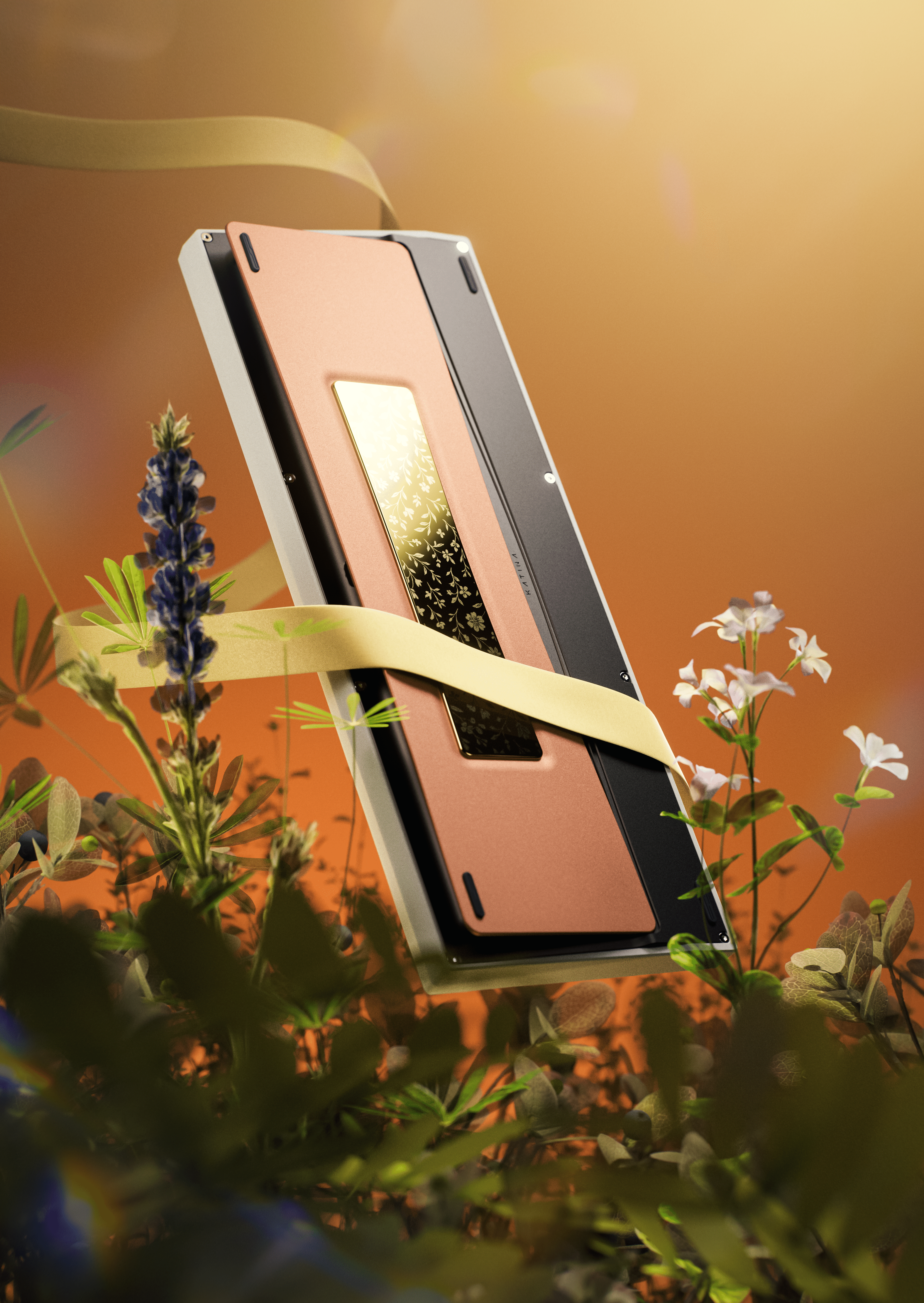

The 「Floral」 design employs a traditional motif on a light gold PVD surface, using flowers to symbolize vitality and virtue, creating an aura of understated luxury and grace.

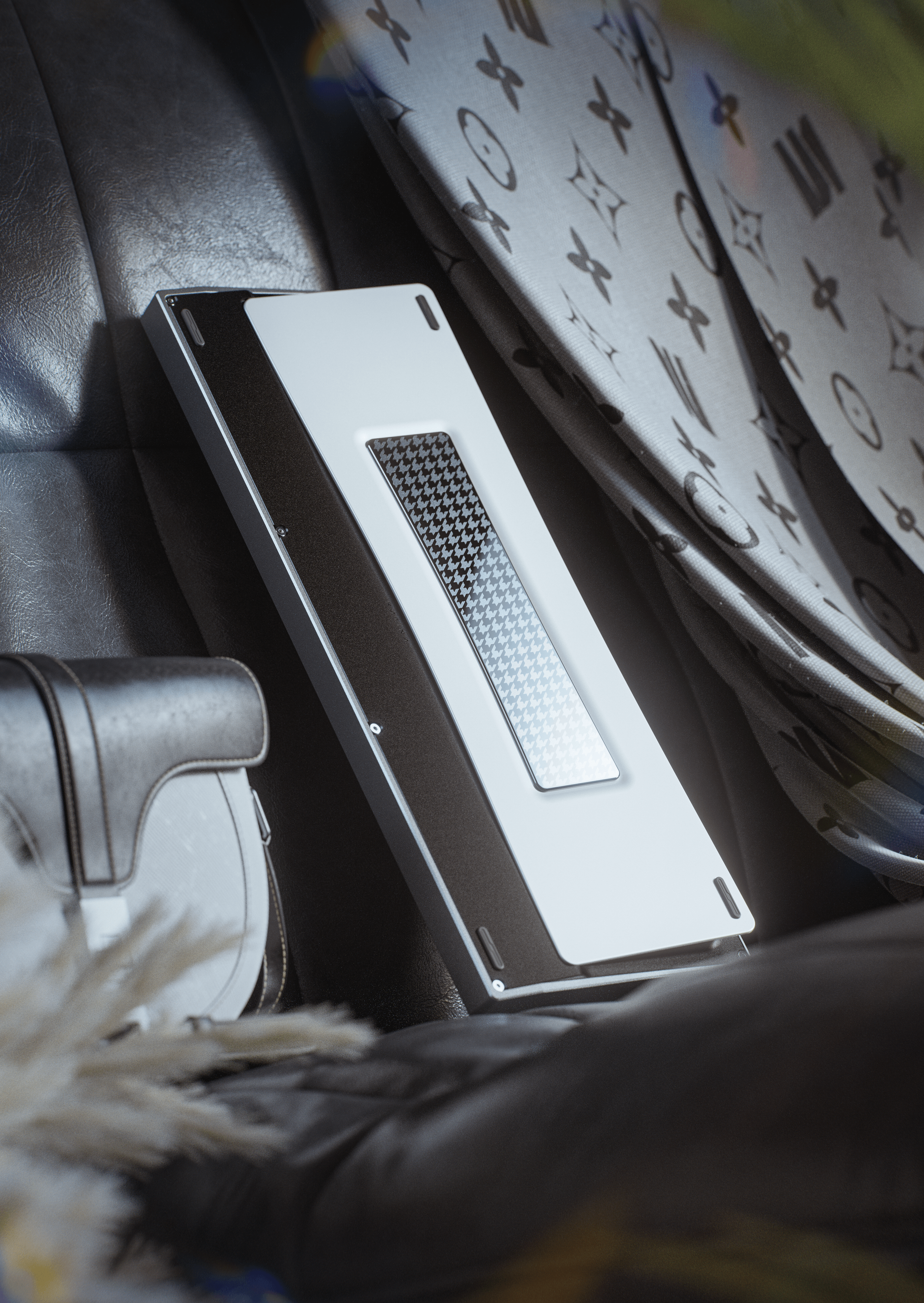

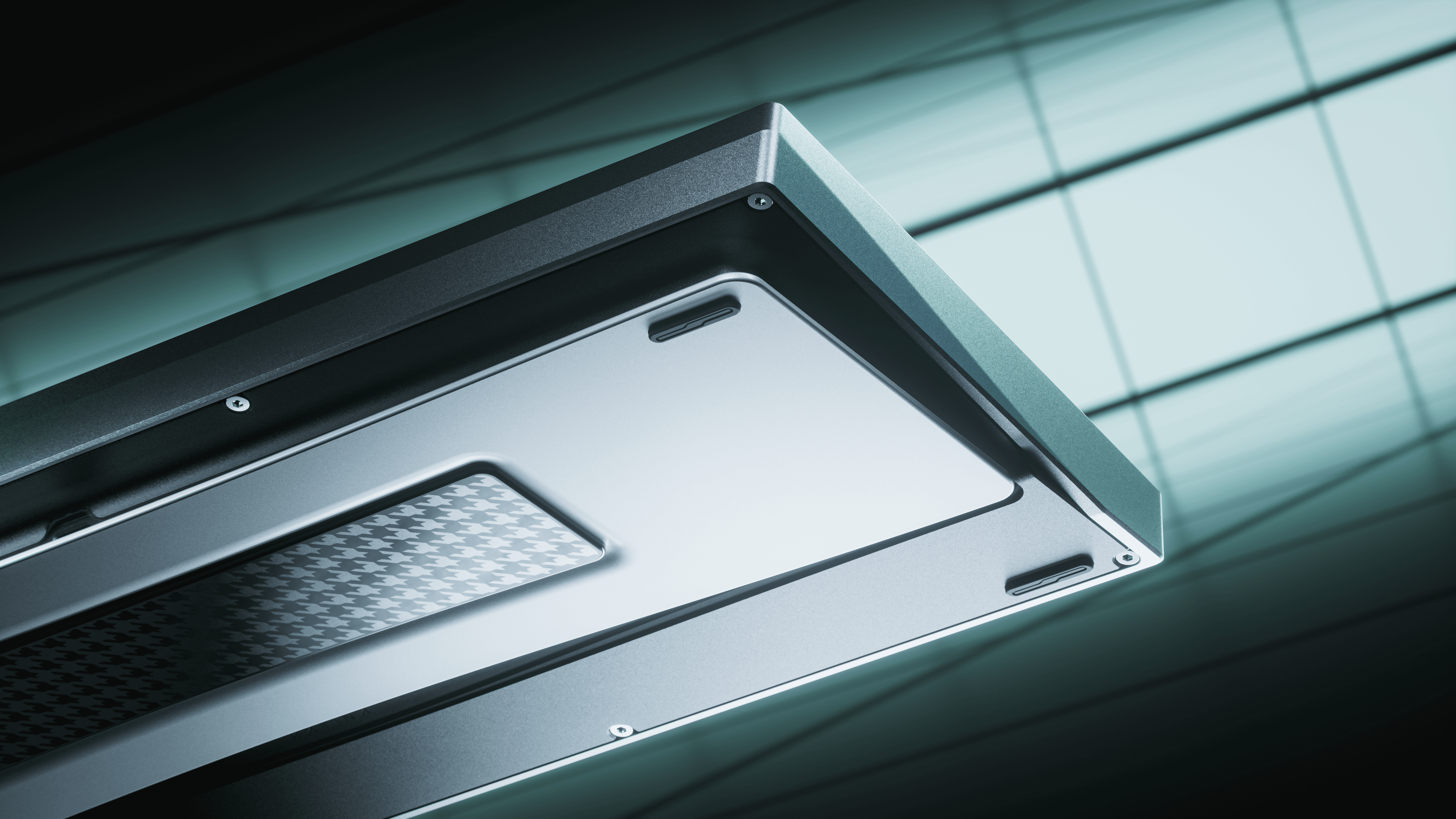

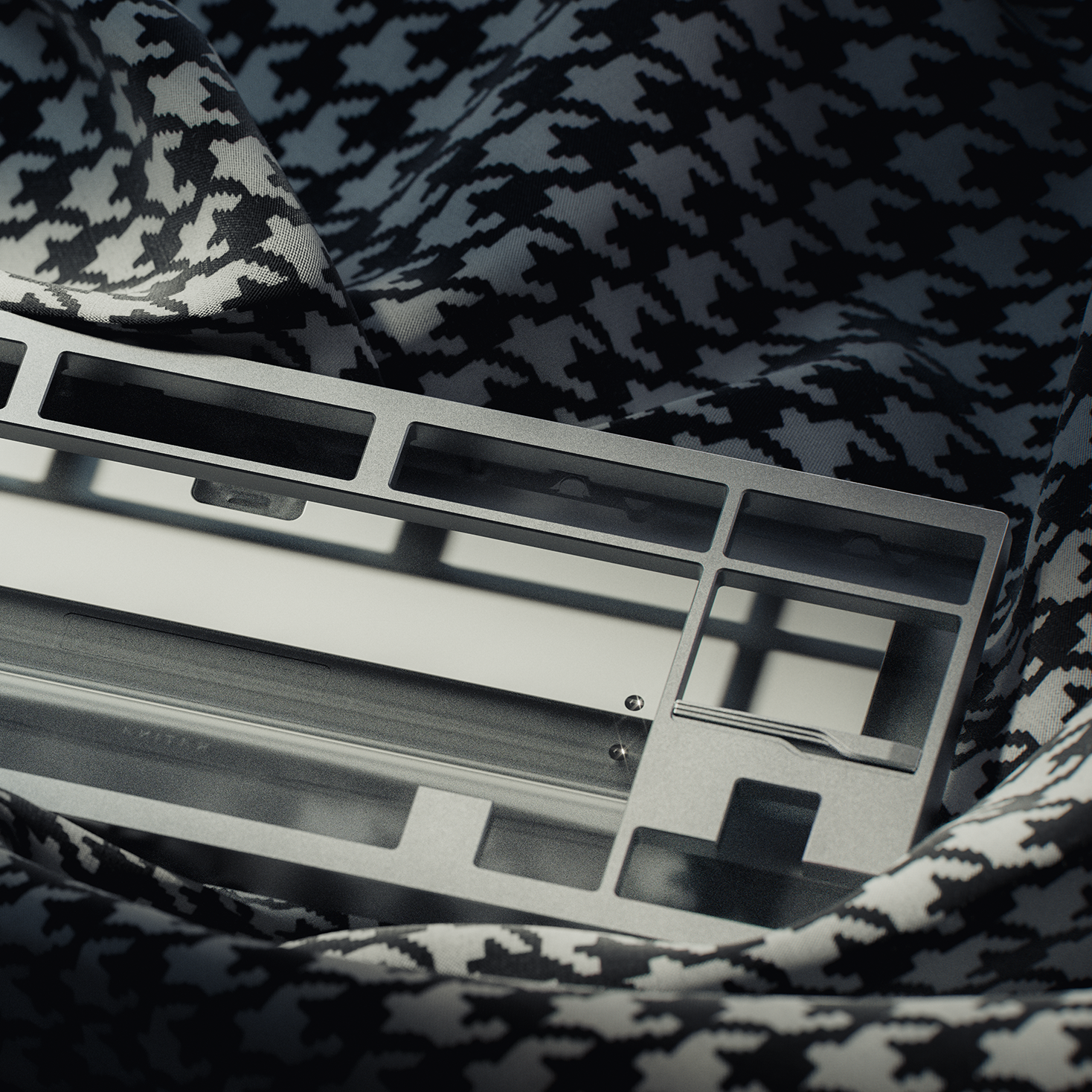

The 「Shadow」 edition draws inspiration from the classic Houndstooth pattern, utilizing advanced Imaging PVD technology to achieve a sophisticated and retro aesthetic. Both represent the limitless artistic potential of stainless steel in our hands.
Floral
Shadow
Browse All Content by Creator
Katina's Journey - Origin
Project Origin
The Birth of Katina: 'A Story of Creative Synergy'
In August 2025, designer XIONG arrived with a single concept sketch that would become the beginning of something special. From the moment we saw the initial drawing of Katina, we knew it resonated deeply with iNN Studio's design philosophy and pursuit of aesthetic excellence. This marked the start of a collaboration built on mutual respect and shared vision between designers XIONG and Sen—a partnership that would bring Katina to life.
Katina's Journey - P1
Development phase
From a Shared Vision to a Refined Reality
September 2025 witnessed the project evolving with pure passion and uncompromising standards.

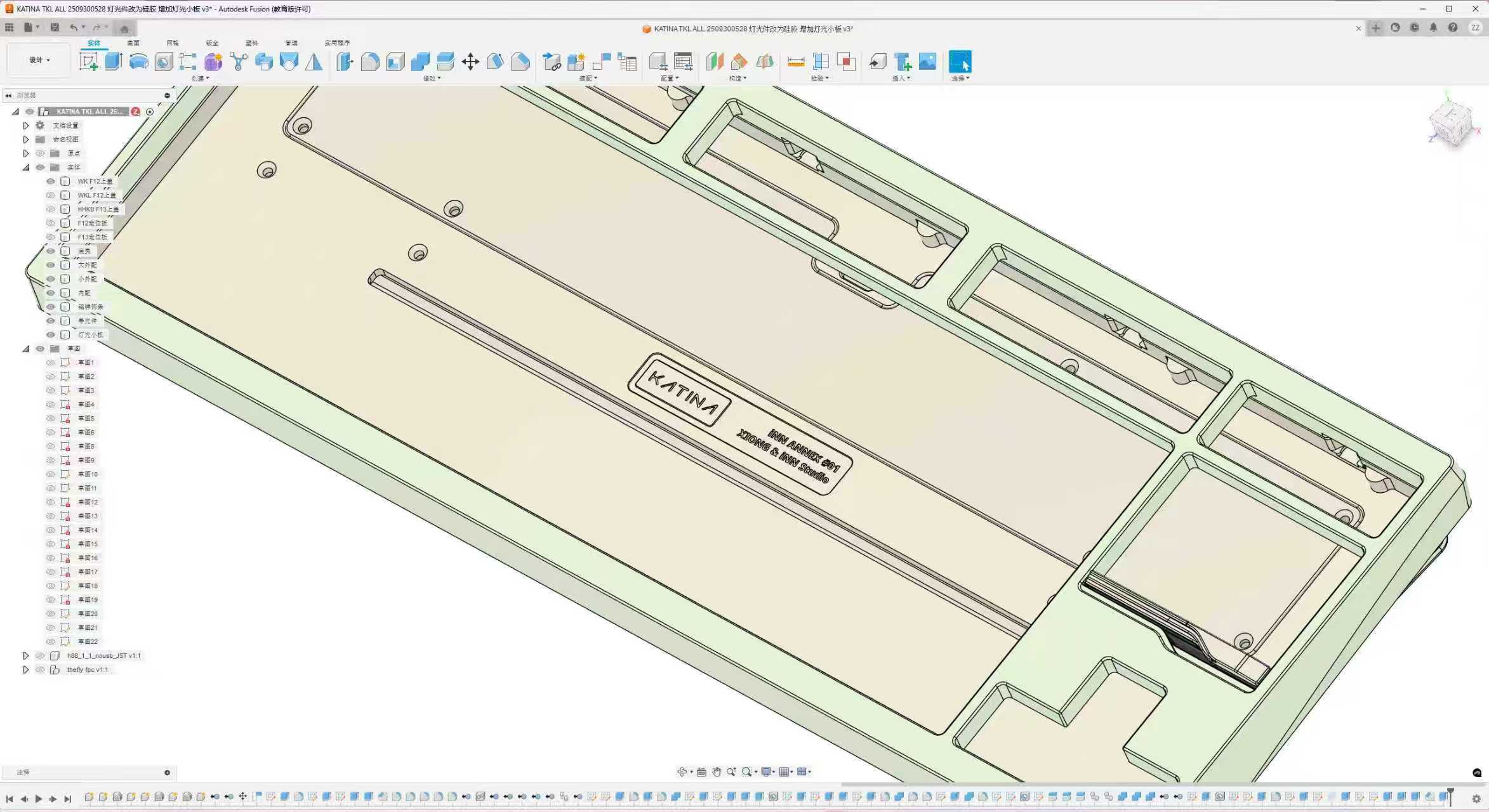

XIONG led the 3D modeling efforts while both designers worked in tandem to refine and iterate on the design. Under Sen's guidance, the keyboard's base structure gradually took its final form, while XIONG continued to perfect the proportions and silhouette. It was also XIONG who independently conceived the original accent design on the front face. By the end of the month, the model had been polished to near-perfection, and Sen began steering color selection and configuration planning—bringing the project into clearer focus.
Katina's Journey - P2
First Release
From Community Voice to Final Form

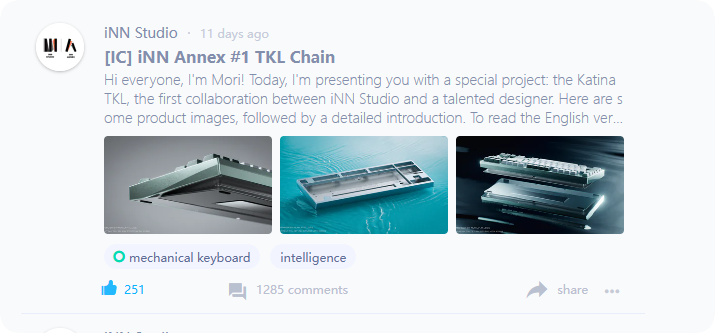

In early October 2025, the initial interest check was launched on Zfrontier under the names of iNN Annex and XIONG, receiving widespread attention—particularly the Floral version, which quickly gained popularity within the community. We received over a hundred interest forms and actively incorporated feedback from enthusiasts, collectively finalizing the production colors and configurations. In response to community input, Sen took the lead in developing an additional accent piece and lighting solution. With that, the project officially moved beyond the drawing board—ready to become a tangible reality.
Learn about the complete IC content→
Katina's Journey - P3
Arrival of Samples & Next Steps
And Now: The Journey Continues
We are excited to share that the first four prototypes of Katina are now in production, including two Classic editions and two Deluxe editions. These units will make their debut at the 2025 ZFX x Weplay Meetup Shanghai, starting November 22nd.
Upon receiving the prototypes, we will immediately release typing tests and introductory videos, and announce our global review unit program. The review initiative will begin in late November and continue throughout the entire group buy period.
Stay tuned to this page and our official Discord for the latest updates—the journey of Katina is just beginning.
Katina's Journey - P4
Group-Buy
Looking Ahead: Join Us in December
The group buy for Katina TKL is set to go live this December. We will update this page with the full vendor list and final pricing ahead of the sale. This keyboard represents more than just a new product—it’s the result of inspired collaboration, thoughtful design, and countless hours of refinement. We invite you to experience its unique character, subtle elegance, and the soul behind every curve and line.
Be part of the story. Katina TKL is ready to find its home.
