Specs
- TKL, 7U Spacebar
- F12 - WK/WKL（Hotswap&Solder）
- F13 - HHKB（Solder Only）

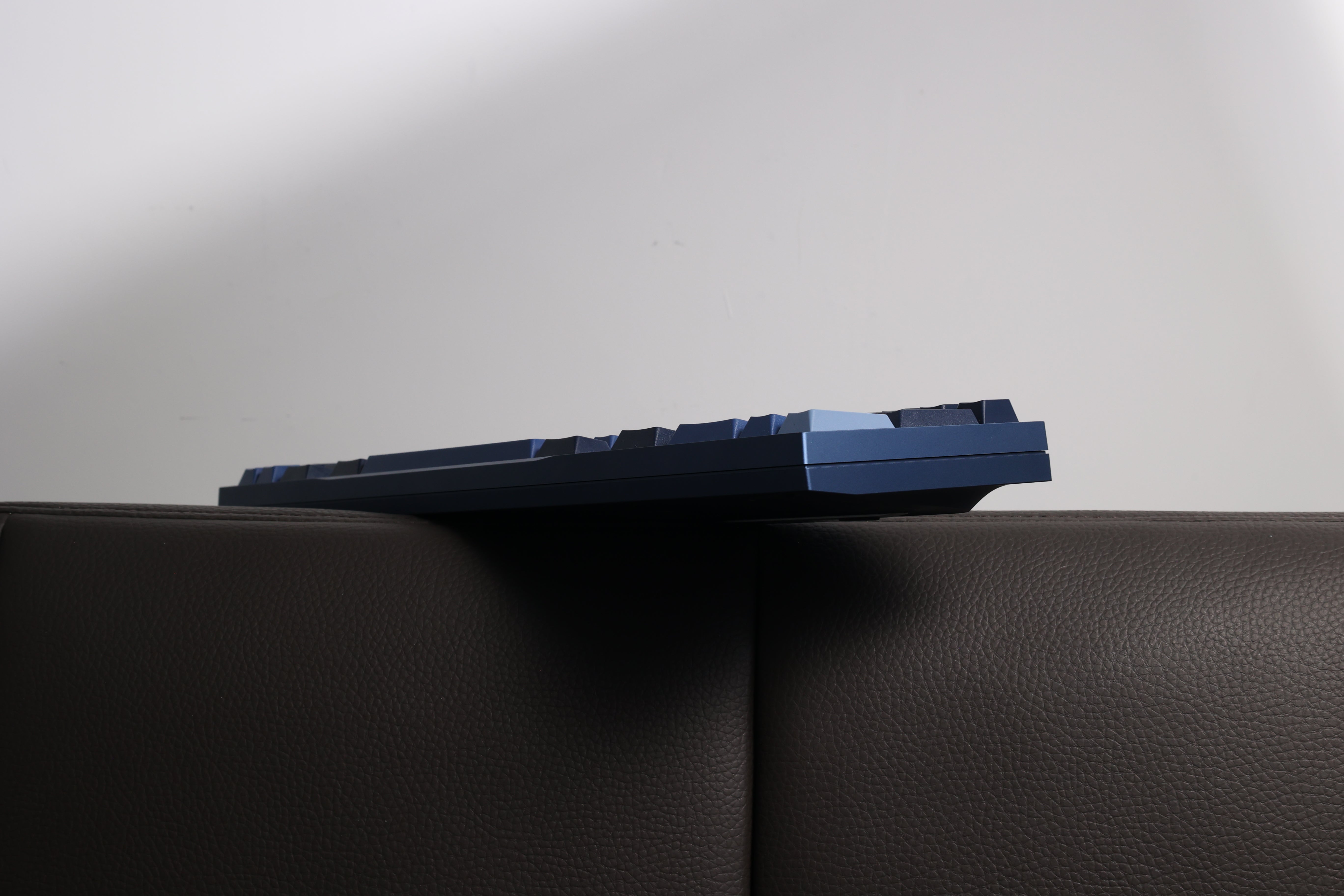

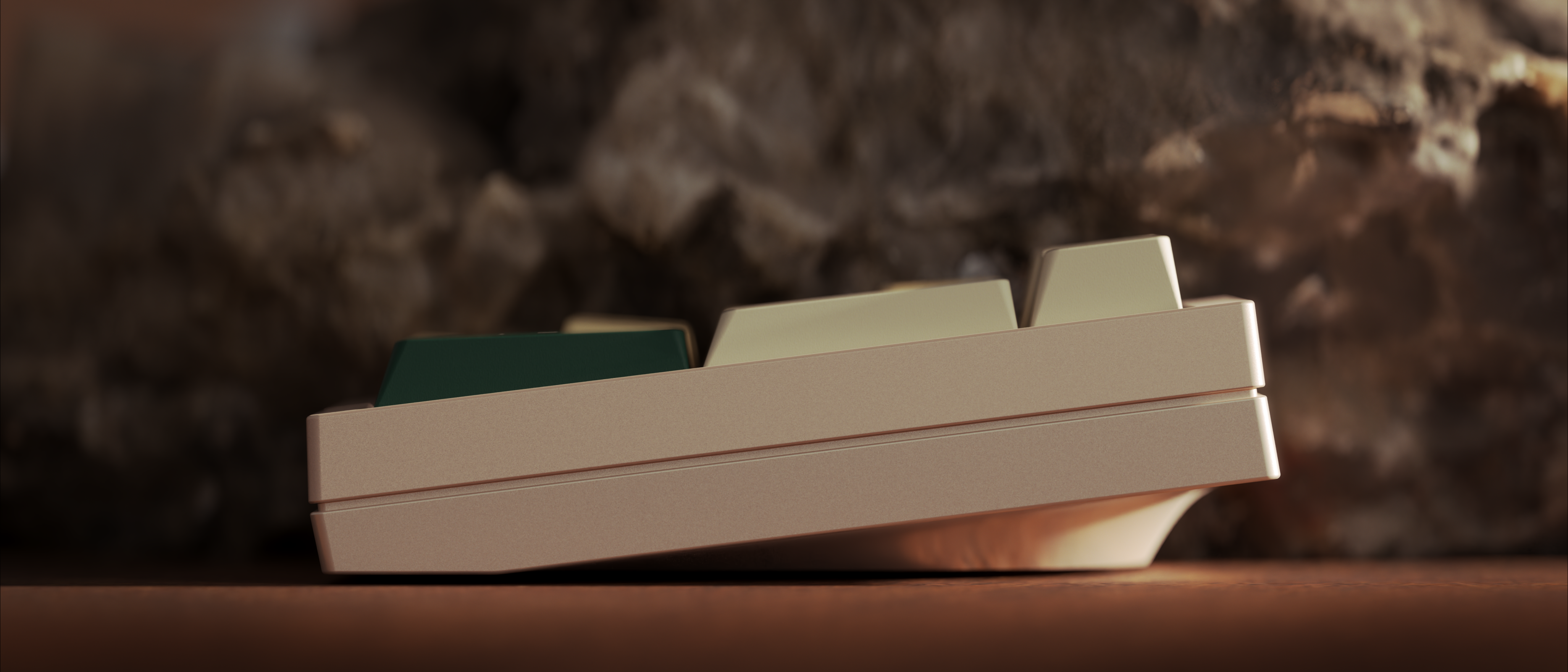

- Actual Front Height=16.64 mm
- EKH (Effective Keystroke Height) =21.83 mm
- Typing Angle：8°
- Classic Edition with SS Internal Weight, ≈ 2.2kg
- Classic PC Edition with Alu Internal Weight, ≈ 1.7kg
- Deluxe Edition, ≈3-3.2 kg
- 1.6mm, FR4, White matte finish, Copper-filled logo and edge, No flex-cut, QMK/Vial, Wired only
- FPC to USB-C Daughter Board
- Hontoo, Shenzhen, China
Sales Info
Entry kit
- Alu top case

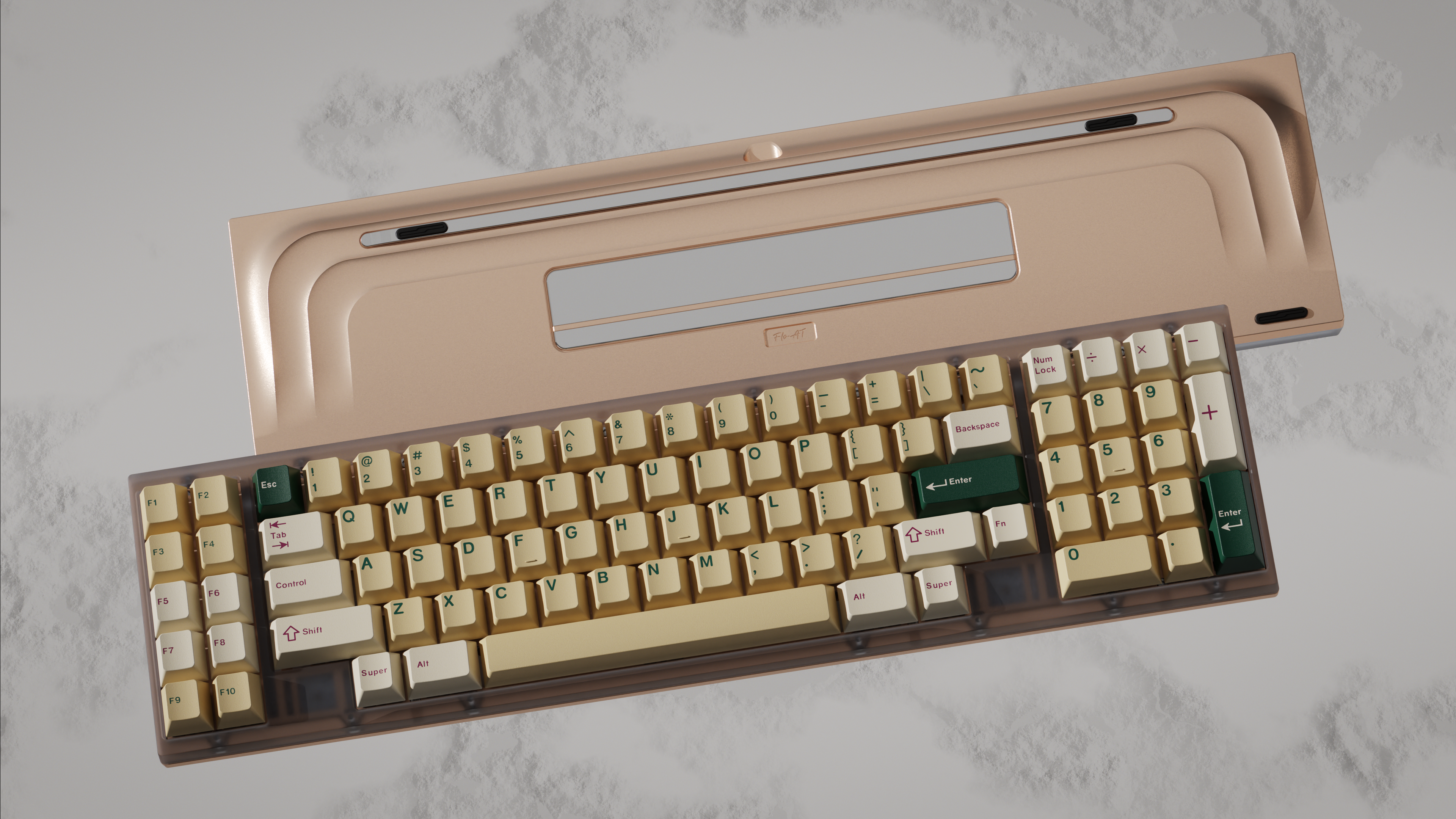

- Alu or PC bottom case to your choice
- Alu internal weight
- Alu base piece
- SS maching pattern external weight
- Alu front accent, choose one of two designs
- Solder PCB
- Alu plate
What else are included?
- 1 × Daughterboard + FPCs
- 1 × LED moudule
- 15 × D3 hollow silicone grommets (50A hardness)
- 1 × D3.5mm O-ring (50A hardness)
- Sufficient limiting pins & spacers
- Sufficient TOP mount silicone sleeves
- 16× Custom iNN feet (8 black + 8 white)
- All necessary screws + spares
- 1× PET bottom pad
- 1× iNN Studio custom keyboard carrying case
- 1× iNN Studio premium velvet bag
- 1× Exclusive PVC collector’s card
- All necessary accessory bags & protect
- Custom shipping carton packaging
Learn more about what's included by default
Vendor List:
TBA
- Global GB
- Limited time, Unlimited quantity
- 200 units
Classic Edition :
- starting at just $300 -330
Deluxe Edition:
- Floral $450-480
- Shadow $480-500
#Note: Prices may fluctuate but remain within this range
Later in Q2 (Due to the one-month shutdown of factories for the CNY)
#Note: The manufacturing complexity of motif mirror PVD weightis exceptionally high, resulting in low yield rates. Therefore, deluxe edition orders exceeding 100 units may experience a slight delay in ETA.
Anodized:
- Silver, Light Teal, Spinal Purple, Earth Green,
- Wind Blue, Iris Blue, Ice Mauve, *Gunmetal
Coated:
- Quartz Pink, *Shinny Cream White
#Note: Color with *mark means its exclusive for Deluxe Eddition
Upgrade to:
- Hot-swap PCB

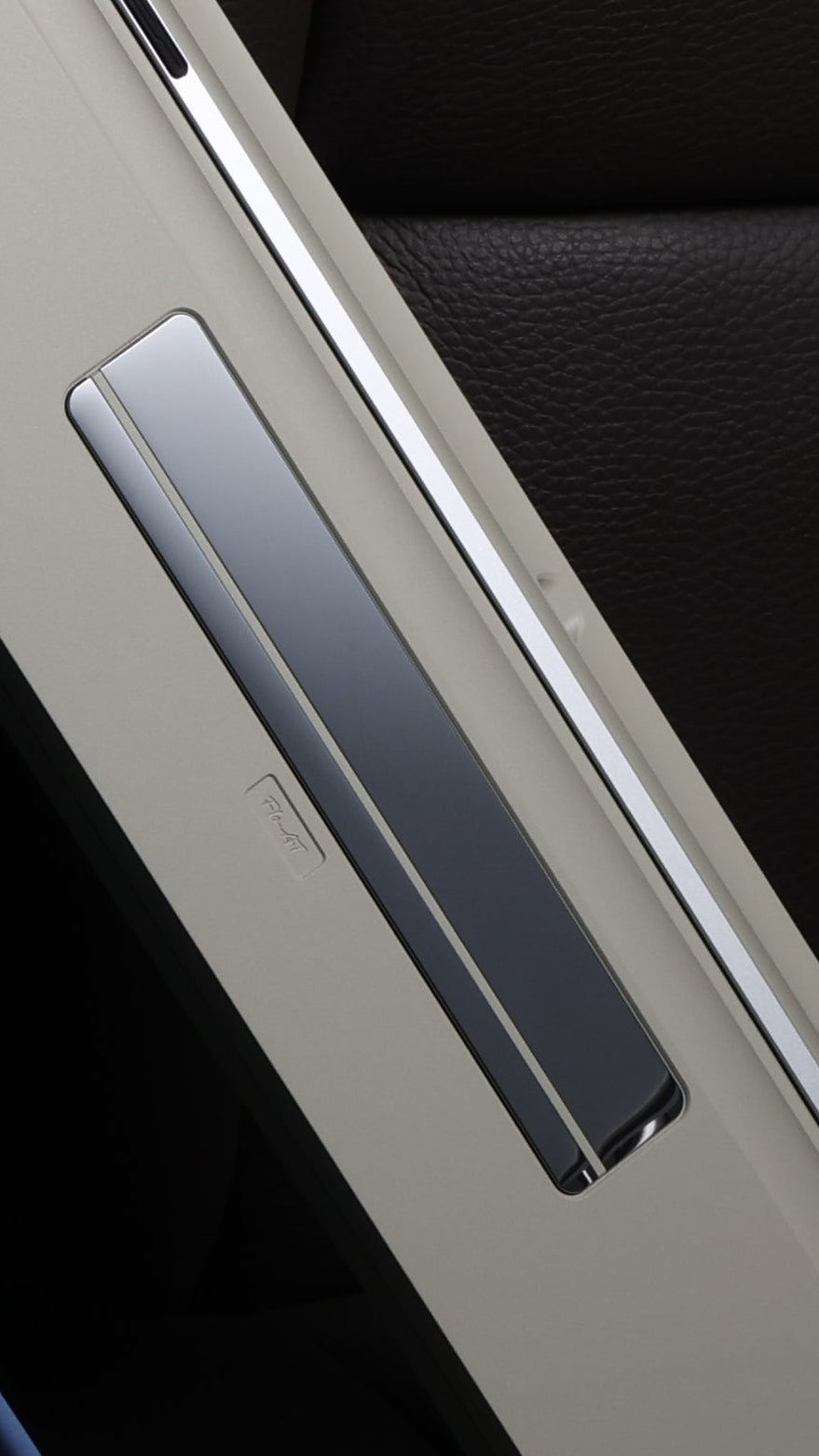

- Mirrored PVD SS external weight
- SS internal weight
- Blasted copper/SS base piece & front accent (comes togerther)
- Solder PCB
- Hotswap PCB
- Daughterboard and JST cable
- Plate in Alu/PP/PEI/CF/PC
- F12 WK/WKL top case
- F13 HHKB top case

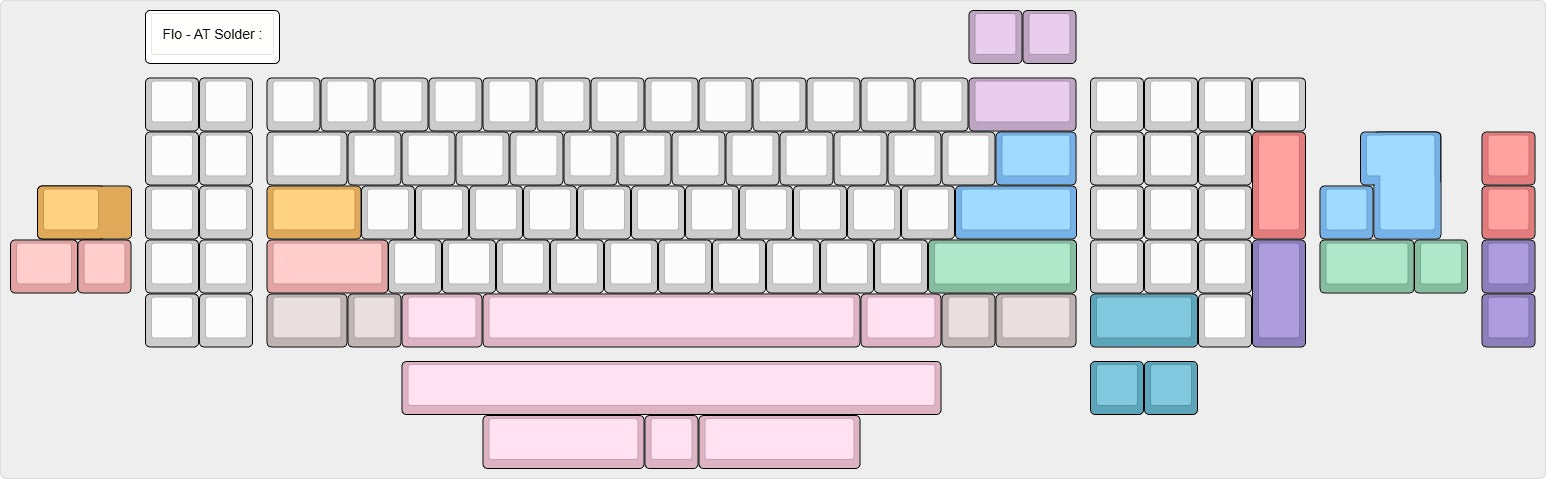

Compatibility

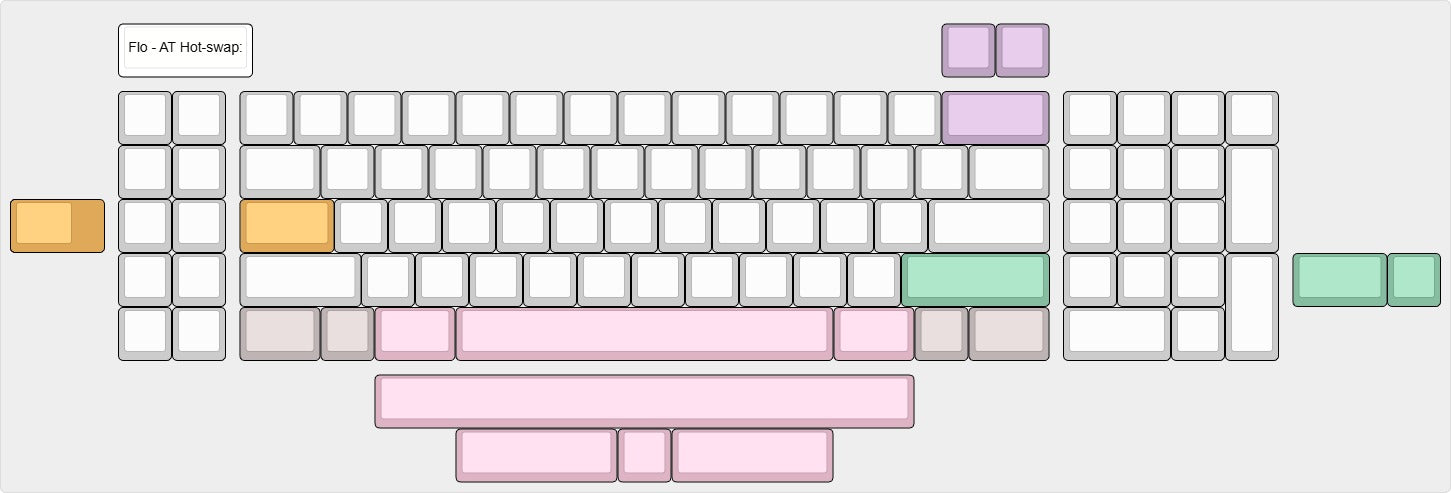

- Hotswap：
Split Backspace, Split L-Shift, Split R-Shift, Stepped Caps, 3-1-3 Split Sapcebar
- Solder：
Split Backspace, Split L-Shift, Split R-Shift, Stepped Caps, 3-1-3 Split Sapcebar, ISO Enter, F13 support
*Drag to see full layout map
Solder
Hot-swap

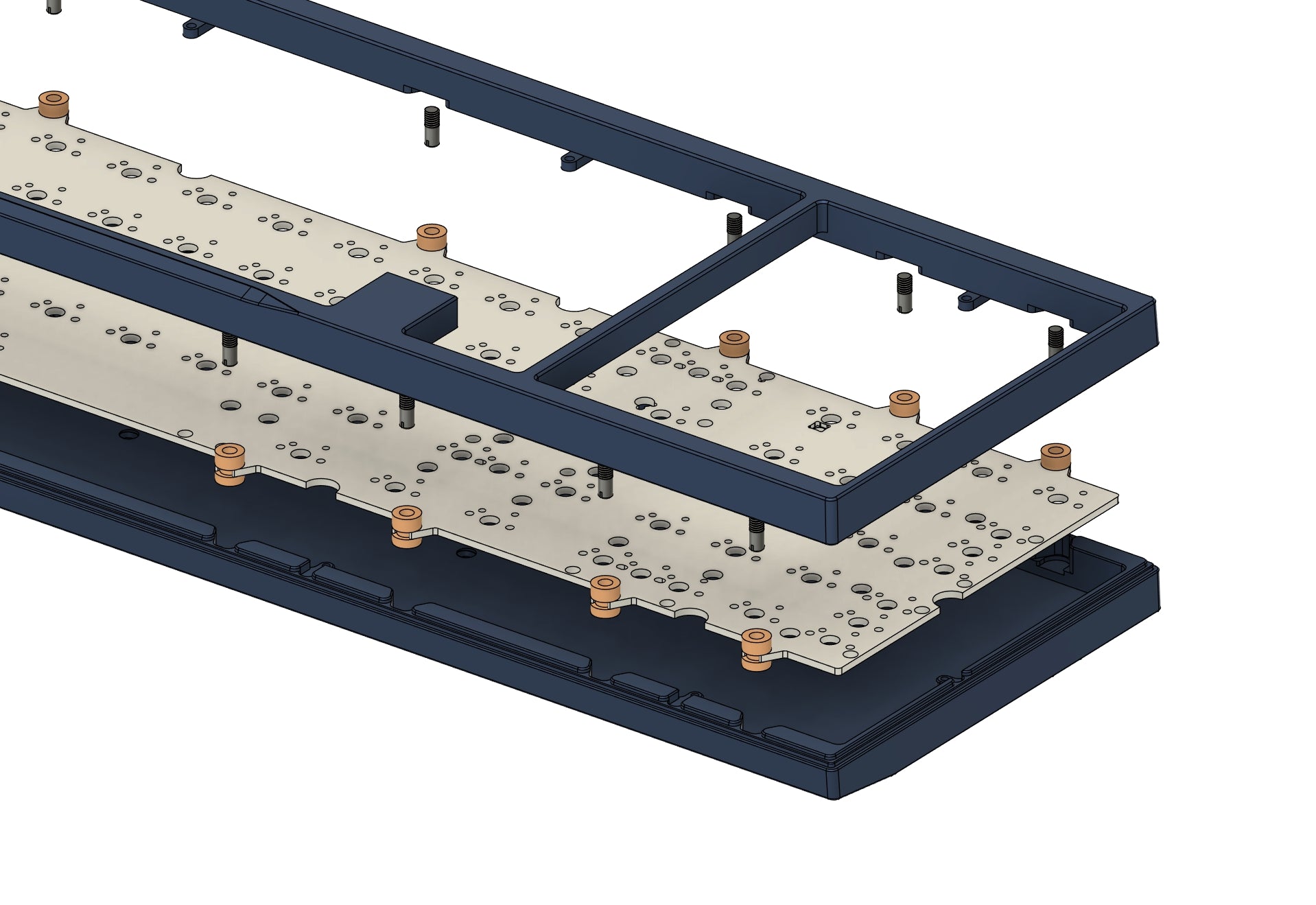

The internal assembly is suspended above the bottom case by the silicone columns, while limiting pins from the top case insert into the columns, restricting planar movement.
In this mode, the entire internal assembly makes no hard contact with the case. Simultaneously, the limiting pins introduce a subtle sense of firmness, giving a character best described as resilient.
With plateless mode and 3.7mm available travel space, the typing experience on the alphanumeric zone becomes notably soft and bouncy.
Katina TKL adopted a configuration of 5 upper and 3 lower O-ring bosses to support the internal assembly.
It also employs standard D3.5 silicone O-ring and includes compatible clearance cuts in the plate for screw-in stabilizers. This delivers a typing experience that is moderately soft and acoustically focused.
The design is compatible with most mod parts and accessories readily available on the market,
e.g. Nexuros X Geon ‘s PCB Snap & Key Snap

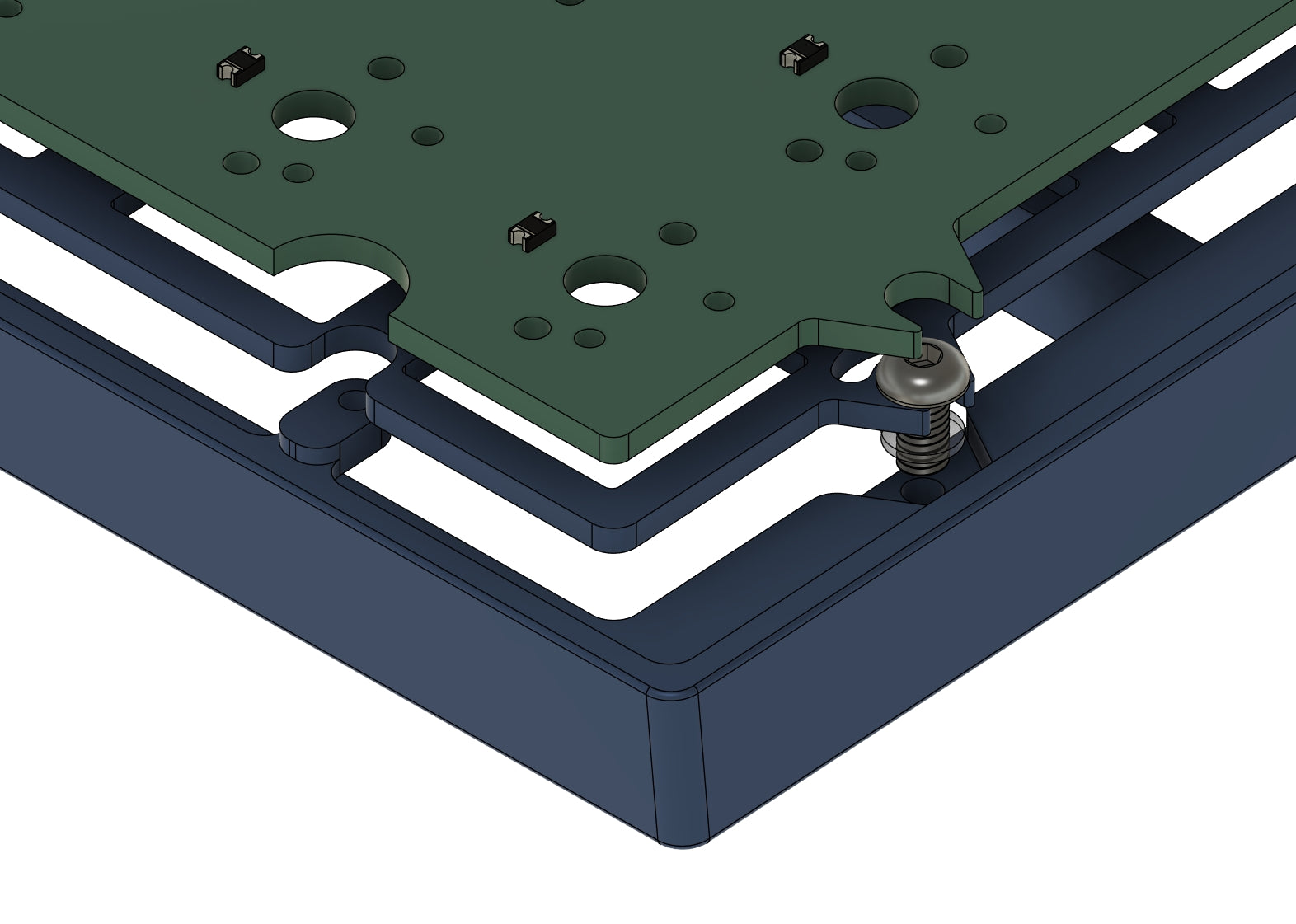

The Katina TKL can also be configured in a top-mounted mode using M2 cup head screws fitted with custom silicone sleeves.
The degree of screw tightness can be adjusted to influence the down travel to some extent, while the plate makes only minimal contact with the screw heads.
This design effectively isolates vibration and unwanted noise, resulting in a solid typing feedback.
